| Air Flow Direction | : | Vertical |
| BTU Cooling Rating | : | 18,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 Range | : | 10.05-13.5 |
| EER2 | : | 10.0~11.0~12.0~13.0 |
| Energy Star Certified | : | Yes |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 20 A |
| Minimum Circuit Ampacity (MCA) | : | 14 A |
| Model Number | : | RA14AZ |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 32.38 in |
| Packaged Height | : | 26.5 in |
| Packaged Width | : | 32.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 144 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 12.0-16.4 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 151 lbs |
| Sound Level | : | 70.7 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

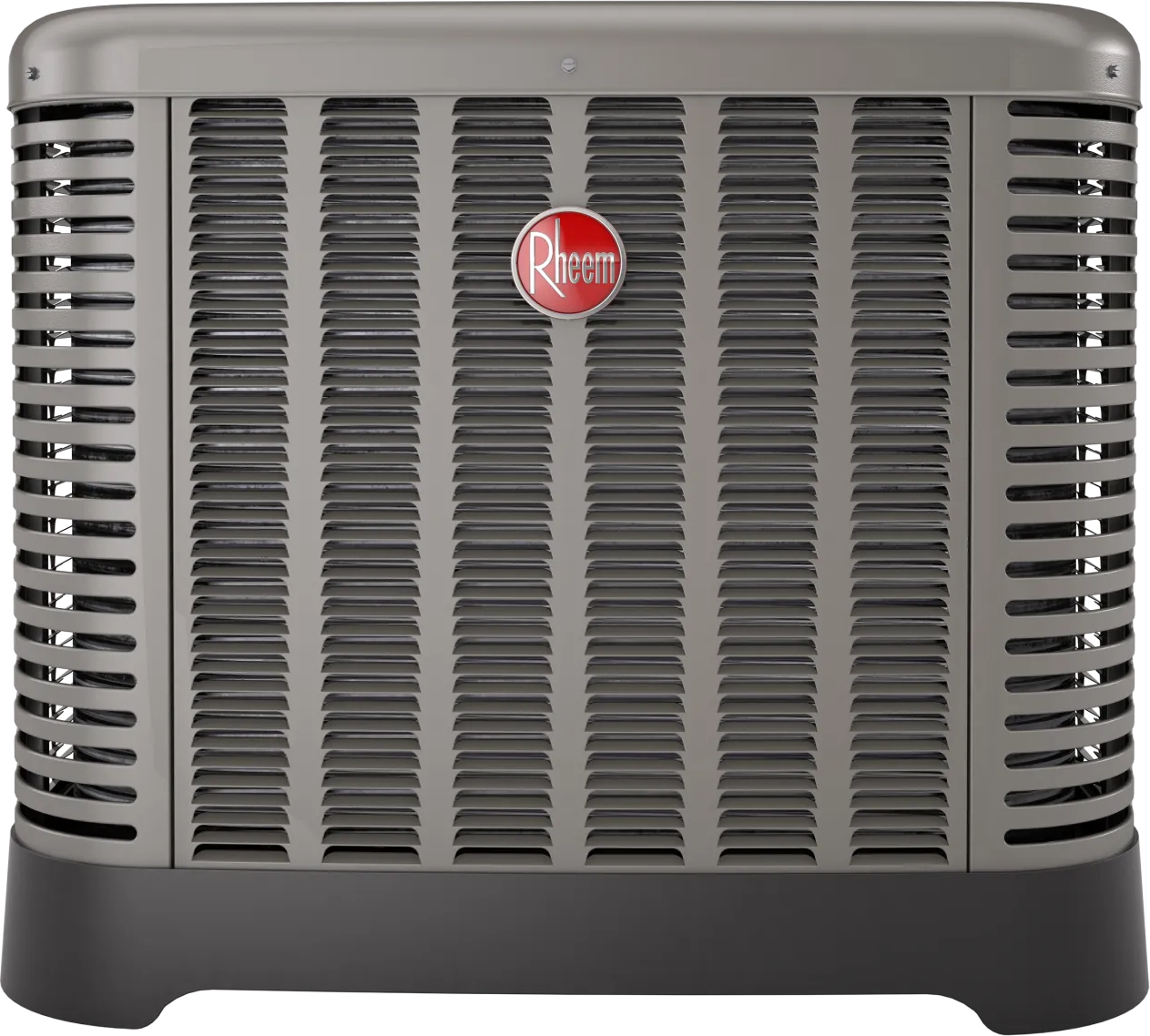

The Rheem® Endeavor Line Classic series RA14AZ is a reliable single-stage air conditioner designed for residential applications. It delivers efficient cooling with a SEER2 rating up to 16.4 and is ENERGY STAR certified, ensuring dependable performance and energy savings.Built with the technician in mind, this unit features a modern, durable cabinet with several design elements to simplify installation and maintenance. Its straightforward system matching allows for flexible integration with various tiers of gas furnaces, making it a versatile choice for new construction or system replacements.
- Triple Service Access: Features PlusOne® Triple Service Access with a 15-inch wide, two-fastener removable corner for easier and faster repairs.
- Expanded Valve Space: Provides a minimum of 27 square inches of working area with the PlusOne® Expanded Valve Space for simplified installation and service.
- Efficient Coil Design: A 7mm condenser coil reduces the unit's weight and refrigerant requirements for a lighter footprint and less environmental impact.
- Simplified Diagnostics: Includes a diagnostic service window and external gauge port access for easy connection of low-loss gauge ports.
- Durable Construction: Curved louver panels provide ultimate coil protection while enhancing cabinet strength and rigidity.
- On-Demand Information: A scannable QR code offers quick access to technical information to streamline service calls.
