| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 56,000 BTU/h |
| BTU Cooling Rating | : | 54,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 35.75 in |
| EER2 Range | : | 10.8-13.0 |
| EER2 | : | 10.0~11.0~12.0~13.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 51 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 60 A |
| Minimum Circuit Ampacity (MCA) | : | 40 A |
| Model Number | : | RA14AZ |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 38.38 in |
| Packaged Height | : | 52.5 in |
| Packaged Width | : | 38.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 287 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Rane | : | 13.5-16.0 |
| SEER2 | : | 13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 294 lbs |
| Sound Level | : | 75.8 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.75 in |

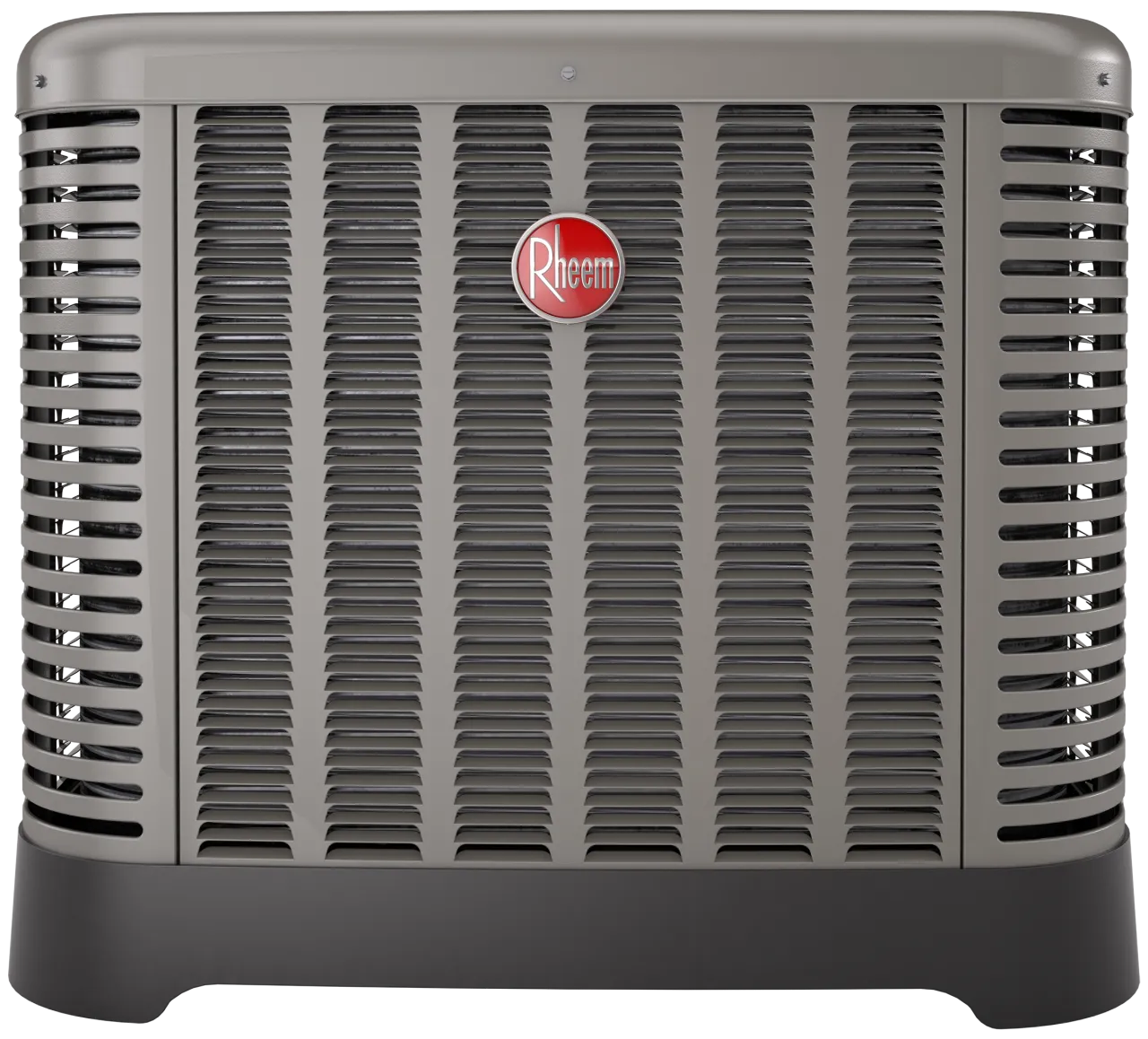

The Rheem Endeavor Line Classic single-stage air conditioner condenser provides reliable and efficient cooling for residential applications. With a cooling capacity of 56,000 BTU/h and ENERGY STAR® certification, this unit combines performance with energy savings. Its durable scroll compressor ensures consistent operation and a long service life.Designed with the technician in mind, this condenser features several serviceability enhancements. The cabinet provides industry-leading access to internal components and service valves, simplifying installation and routine maintenance calls.
- Triple Service Access:Features Plus
- One® Triple Service Access, a 15-inch wide corner opening with a two-fastener panel for quick access to internal components.
- Expanded Valve Space:Designed with Plus
- One® Expanded Valve Space, providing 27 square inches of working area for easier service valve access.
- Efficient Coil Design:Utilizes a 7mm condenser coil, which reduces the required refrigerant charge and the overall unit weight.
- Streamlined Service:Equipped with a diagnostic service window, external gauge ports, and a QR code for on-demand technical information.
- Durable Construction:Built with curved louver panels that protect the coil and increase cabinet rigidity, along with a rust-resistant powder-coat paint finish.
- Simplified Maintenance:An extra-long fan motor harness allows the top to be removed without disconnecting wires, making cleaning and maintenance easier.
