| Air Flow Direction | : | Vertical |
| BTU Cooling Rating | : | 48,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 33.75 in |
| EER2 Range | : | 9.0-10.0 |
| EER2 | : | 9.0~10.0 |
| Energy Star Certified | : | No |
| Height | : | 31 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 40 A |
| Minimum Circuit Ampacity (MCA) | : | 25 A |
| Model Number | : | RA15AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 32.5 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 192 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14.6-15.2 |
| SEER2 | : | 14.0~15.0 |
| Shipping Weight | : | 200 lbs |
| Sound Level | : | 76.2 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

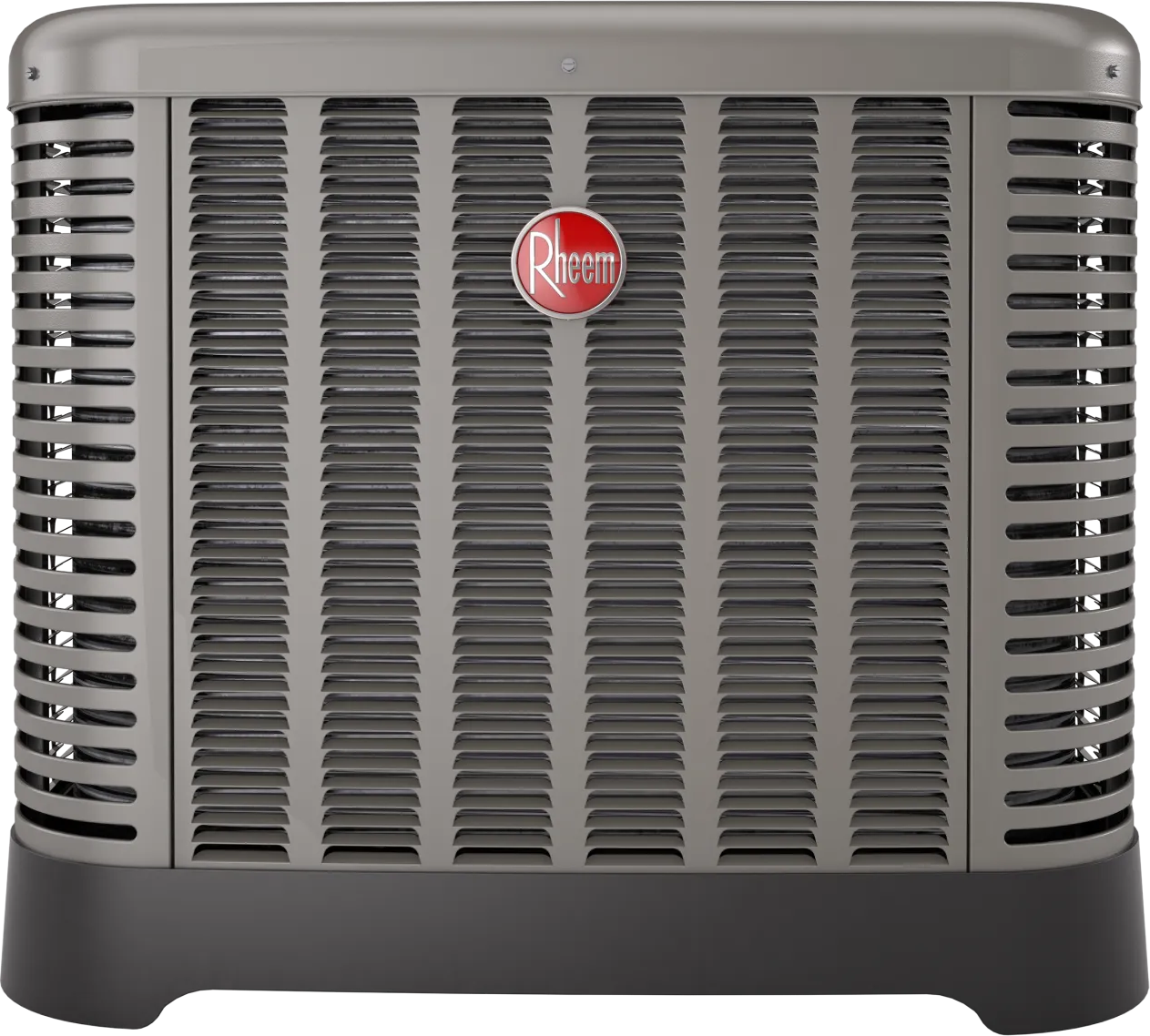

The Rheem® Endeavor Line Classic Plus RA15AZ air conditioner delivers efficient, reliable cooling with an inverter-driven, variable-speed compressor. This technology allows the unit to precisely adjust its output for consistent temperature and humidity control, leading to improved comfort and energy savings. As an EcoNet® Enabled unit, it supports automatic system configuration for seamless integration and optimized performance.Built with the technician in mind, this air conditioner features a compact footprint with a 7mm copper condenser coil that requires less refrigerant. Service is simplified with features like expanded valve space and triple service access, while integrated Bluetooth® connectivity allows for quick diagnostics and setup through the Rheem® Contractor app.
- Inverter-Driven Compressor: The PlusOne® variable-speed twin rotary compressor provides precise temperature and humidity control for enhanced efficiency and comfort.
- EcoNet® Enabled: Allows for automatic system configuration and optimization when connected to an EcoNet Smart Thermostat.
- Bluetooth® Connectivity: Built-in technology works with the Rheem® Contractor and EcoNet® apps for advanced setup, monitoring, and troubleshooting directly from a mobile device.
- Quiet Operation: Swept Wing Fan Technology is engineered to improve unit acoustics, resulting in quieter performance.
- Enhanced Serviceability: Designed with PlusOne® Expanded Valve Space and Triple Service Access, providing a larger working area and easier access to internal components for faster repairs.
