| Air Flow Direction | : | Vertical |
| BTU Cooling Rating | : | 48,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 35.75 in |
| EER (Custom) | : | 10.05-13.5 |
| EER | : | 10.0~11.0~12.0~13.0 |
| Energy Star Certified | : | No |
| Height | : | 45 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 40 A |
| Minimum Circuit Ampacity (MCA) | : | 25 A |
| Model Number | : | RA16 |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 38.25 in |
| Packaged Height | : | 45.375 in |
| Packaged Width | : | 38.25 in |
| Phase | : | 1 ph |
| Product Family | : | Classic |
| Product Weight | : | 225 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 12.0-16.5 |
| SEER | : | 12.0~13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 232 lbs |
| Sound Level | : | 74.3 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.75 in |

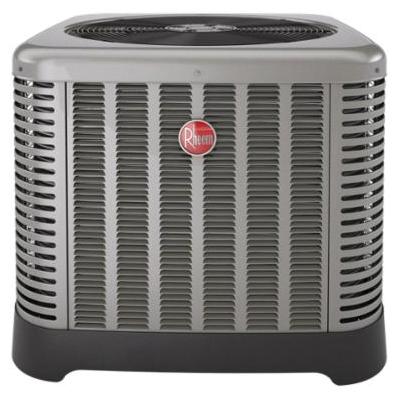

The Rheem Classic RA16 Series single-stage air conditioner delivers reliable and efficient cooling performance. Built around a dependable scroll compressor, this 4.0-ton unit is designed for years of quiet and consistent operation when paired with a matching indoor coil.Engineered for durability and ease of service, the cabinet features a powder-coated finish and a composite base pan to resist corrosion and reduce sound. The single-row condenser coil and easily removable louver panels simplify cleaning, helping to maintain performance season after season.
Durable Base Pan: Features a composite base pan that dampens sound, captures louver panels, and eliminates corrosion.Enhanced Serviceability: PlusOne™ Triple Service Access provides a 15-inch wide corner opening for faster and easier component access and repairs.Installer-Friendly Design: PlusOne™ Expanded Valve Space offers 27 square inches of working area around service valves for easier gauge connection and brazing.Reliable Compressor: Equipped with a scroll compressor that uses 70% fewer moving parts for higher efficiency and increased reliability.Protective Finish: A powder-coat paint system and rust-resistant screws provide a long-lasting professional finish confirmed through 1500-hour salt spray testing.System Protection: Includes factory-installed high and low pressure switches to protect the compressor from operational faults.
