| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 34,200 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 33.75 in |
| EER2 Range | : | 9.0-10.5 |
| EER2 | : | 9.0~10.0 |
| ENERGY STAR Certified | : | No |
| Height | : | 27 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 20 A |
| Model Number | : | RA16AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 28.5 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 150 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Rane | : | 14.8-17.0 |
| SEER2 | : | 14.0~15.0~16.0~17.0 |
| Shipping Weight | : | 157 lbs |
| Sound Level | : | 72.9 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

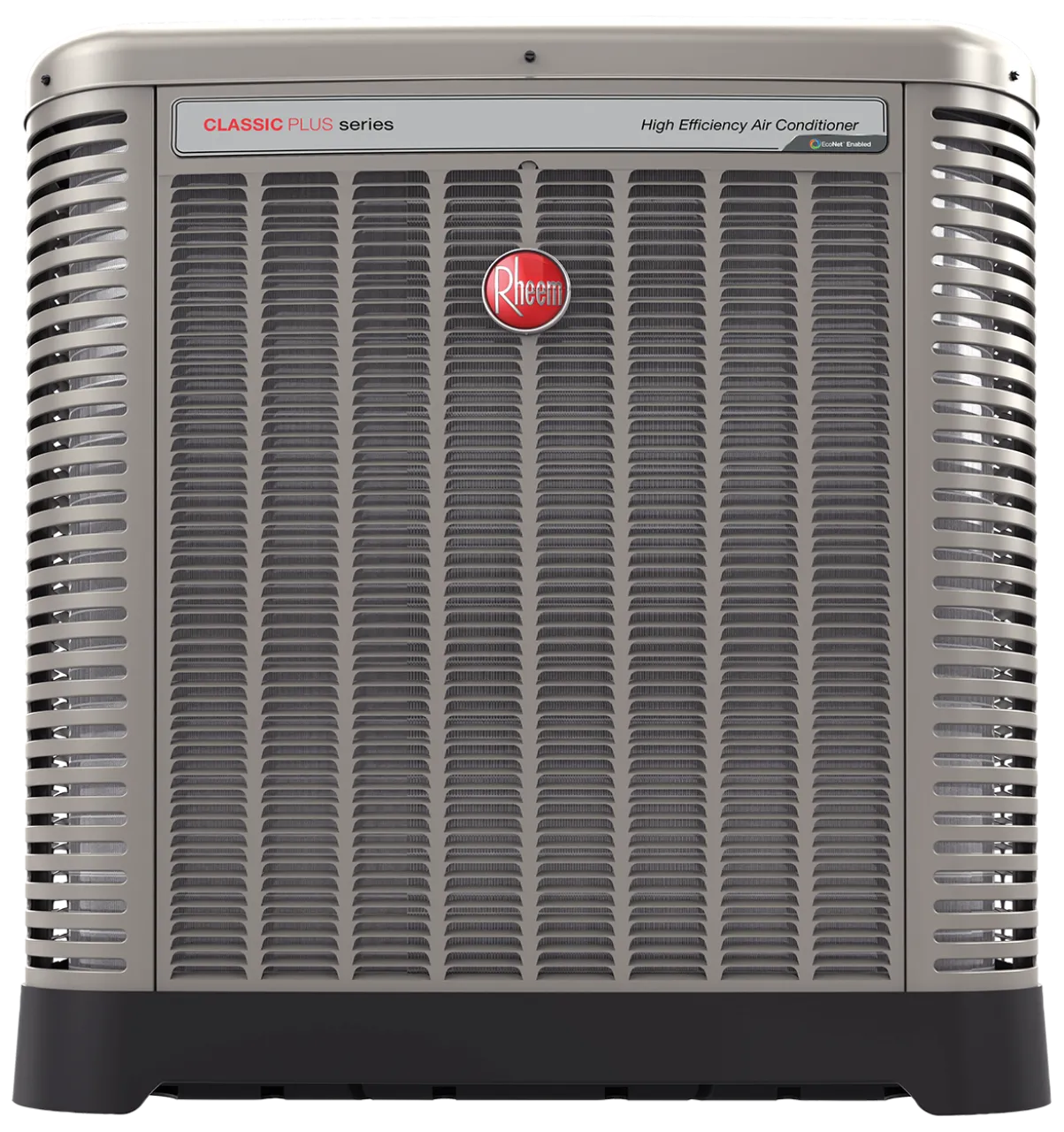

The Rheem Endeavor Line Classic Plus Series RA16AZ is a high-efficiency air conditioning condenser designed for reliable residential cooling. Featuring an inverter-driven compressor, it delivers precise temperature and humidity control with cooling efficiencies up to 17.0 SEER2, ensuring consistent comfort and quiet operation.Built for modern connectivity and ease of service, this unit is EcoNet® enabled for full system integration and optimization. It incorporates PlusOne® Diagnostics with Bluetooth® connectivity, which simplifies installation and troubleshooting for technicians by providing real-time data and system alerts through the Rheem Contractor App.
- Eco
- Net® Enabled:Allows for automatic system configuration and optimization when paired with an Eco
- Net Smart Thermostat for enhanced efficiency and comfort.
- Advanced Diagnostics:Features Plus
- One® Diagnostics with Bluetooth® connectivity, allowing technicians to use the Rheem Contractor App for streamlined setup, monitoring, and troubleshooting.
- Inverter-Driven Compressor:A Plus
- One® variable-speed twin rotary compressor provides precise temperature control, superior humidity management, and quiet, high-efficiency operation.
- Quiet Performance:Engineered with Swept Wing Fan Technology to reduce operating noise and improve unit acoustics for homeowner satisfaction.
- Enhanced Serviceability:Designed with Triple Service Access, featuring a 15-inch wide corner panel and removable louvers for faster and easier repairs.
- Reliable Motor:Equipped with a brushless DC (BLDC) condenser motor that enhances reliability and simplifies service.
