| Actual Length | : | 10 |
| Actual Size | : | 20 |
| Actuator Color | : | red |
| Air Flow Direction | : | Vertical |
| BTU Cooling Rating | : | 48,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 33.75 in |
| EER2 Range | : | 9.0-10.5 |
| EER2 | : | 9.0~10.0 |
| Energy Star Certified | : | No |
| Height | : | 31 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 40 A |
| Minimum Circuit Ampacity (MCA) | : | 25 A |
| Model Number | : | RA16AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 32.5 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 188 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14.6-17.0 |
| SEER2 | : | 14.0~15.0~16.0~17.0 |
| Shipping Weight | : | 195 lbs |
| Sound Level | : | 76.2 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

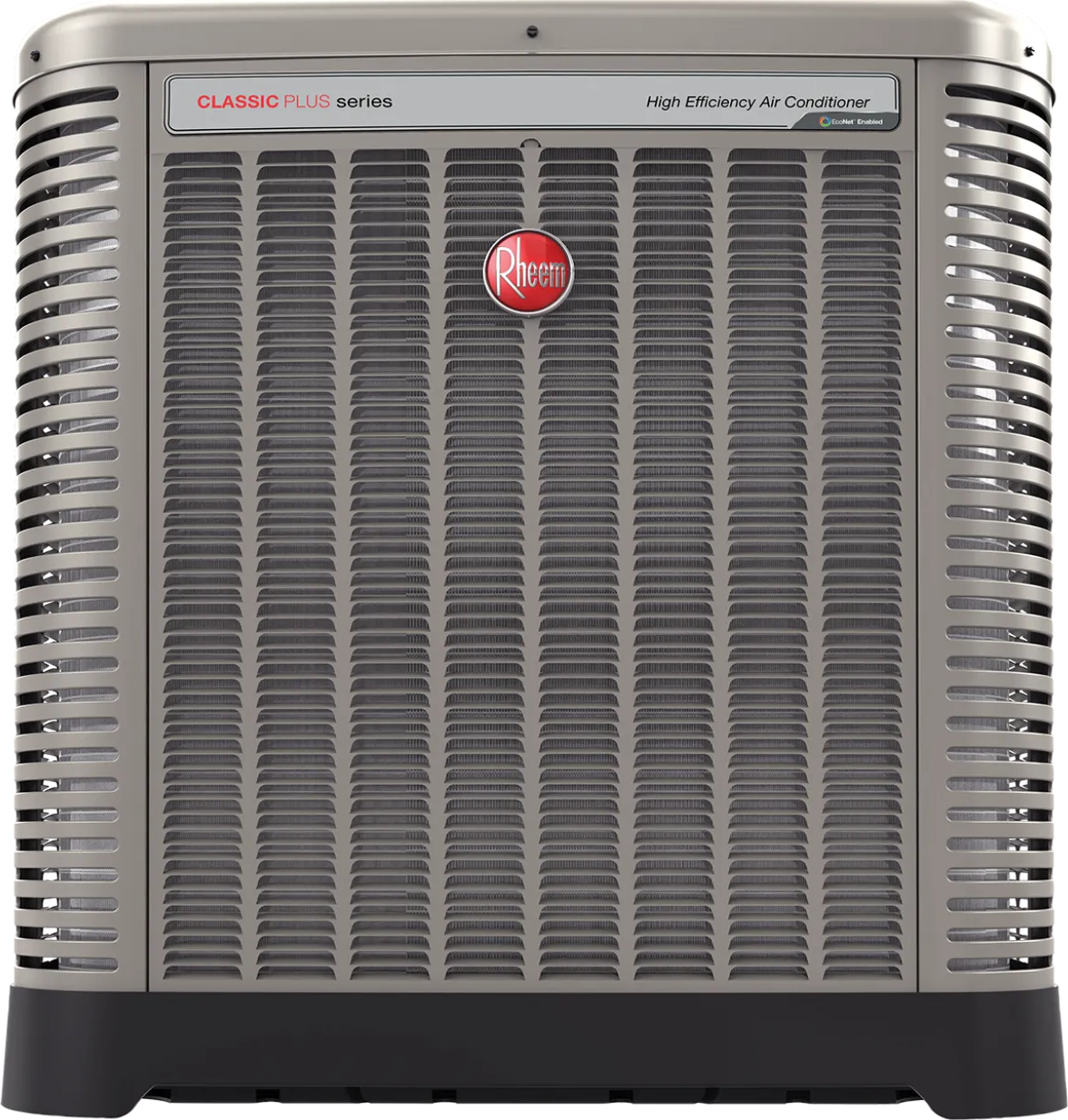

This Endeavor Line Classic Plus Series RA16AZ is a high-efficiency air conditioner that delivers precise temperature and humidity control for residential applications. Its variable-speed inverter-driven compressor adjusts capacity to match cooling demands, resulting in enhanced comfort and energy savings. This unit is EcoNet® enabled for automatic system optimization and seamless integration with smart home controls. Designed with the technician in mind, it incorporates several service-friendly features, including expanded access space and Bluetooth® connectivity for advanced diagnostics, to simplify installation and maintenance.
- EcoNet® Enabled: Provides automatic system configuration and optimization for peak performance.
- Bluetooth® Connectivity: The Rheem® Contractor & EcoNet® apps allow for advanced setup, monitoring, and troubleshooting directly from a mobile device.
- Inverter Technology: A PlusOne® variable-speed twin rotary compressor and inverter drive deliver precise temperature and humidity control by operating from 40% to 100% capacity.
- Quiet Operation: Swept wing fan technology and a standard compressor sound blanket contribute to improved unit acoustics and quieter performance.
- Service-Friendly Design: Features PlusOne® Expanded Valve Space and Triple Service Access with a 15-inch corner opening for faster, easier repairs and maintenance.
- Durable Components: A 7mm copper condenser coil and brushless DC condenser motors enhance reliability and service life.
