| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Rating | : | 36,000 BTU/h |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum Fin~Aluminum Tube |
| Depth | : | 21.6 in |
| Drain Pan Material | : | Composite / Polymer |
| Height | : | 20 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | RCFY |
| Number of Rows | : | 2 |
| Product Family | : | Endeavor |
| Product Weight | : | 49 lbs |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 54 lbs |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Width | : | 17.5 in |

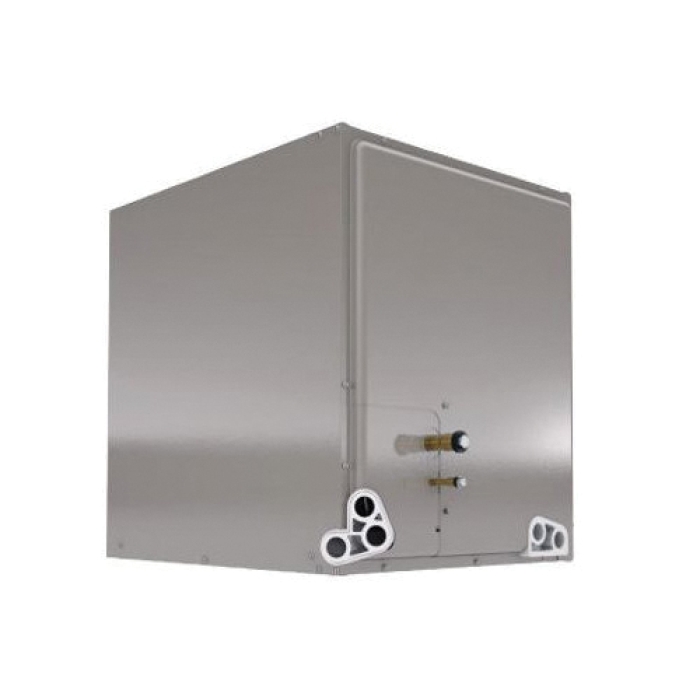

The Rheem® Endeavor Line RCFY Cased N-Coil is designed for reliable performance when paired with Rheem® outdoor units and furnaces. This 3.0-ton coil is engineered for use with low-GWP R-454B refrigerant, providing an efficient and sustainable cooling solution.Built for versatility, this multi-position coil can be installed in upflow, downflow, and horizontal configurations to suit a variety of applications. It is factory leak-tested to ensure system integrity and is AHRI certified for matched-system performance.
- PlusOne Detection System: Features an integrated A2L sensor and mitigation board that pauses outdoor unit operation if excess refrigerant is detected, enhancing system safety.
- N-Coil Design: Maximizes thermal performance and efficiency while minimizing the cabinet height required for installation.
- Installation Flexibility: Offers bi-directional airflow, eliminating the need to reconfigure internal components for horizontal applications.
- Durable Construction: Built with aluminum fins bonded to internally grooved aluminum tubing and a high-grade, corrosion-free thermal-set drain pan for long service life.
- Simplified Draining: Equipped with two sets of 3/4 in N.P.T. condensate drain connections for convenient and flexible installation.
