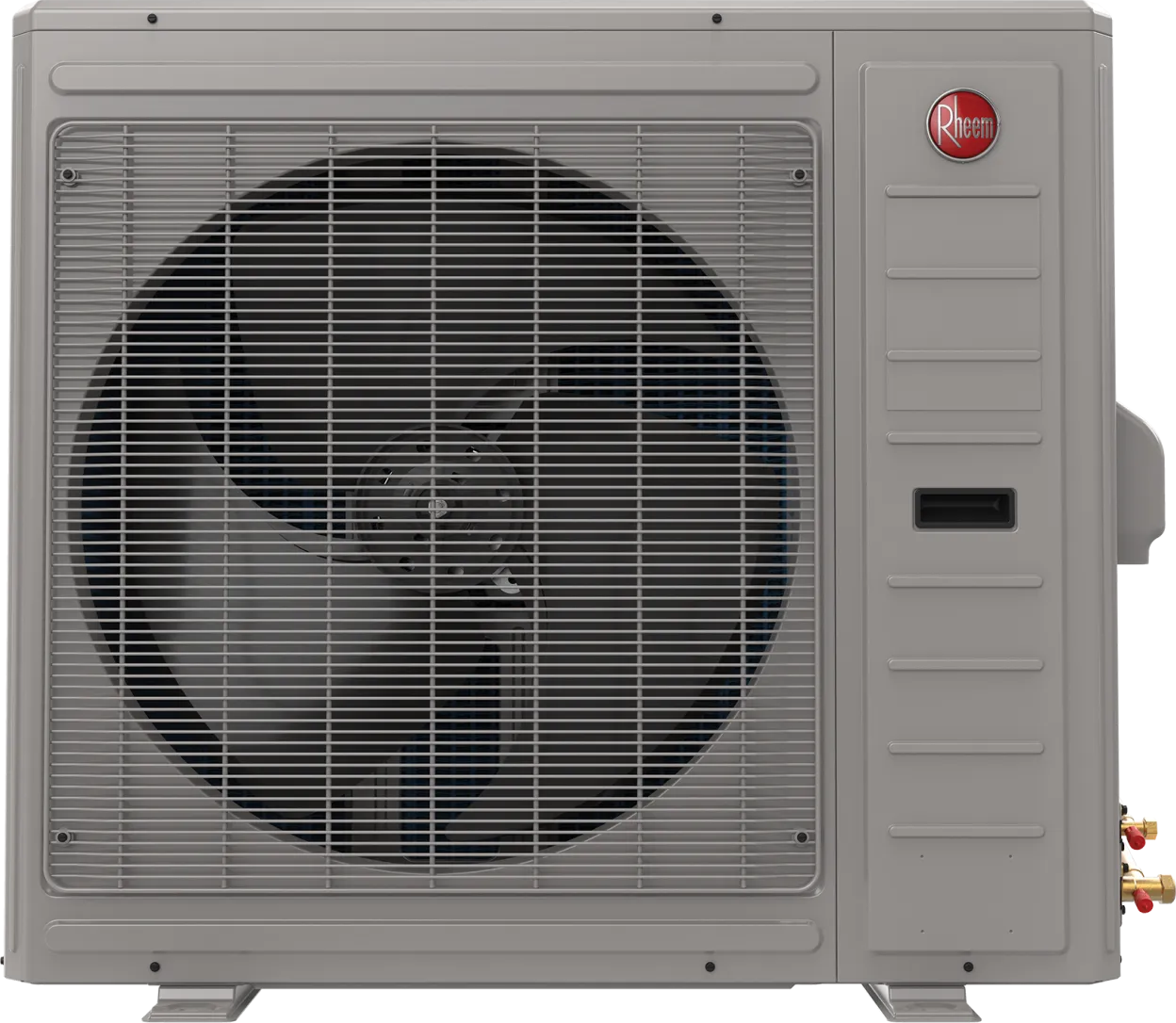

Rheem® RD16AY36AJVCA Universal Heat Pump, 3 ton Tonnage, R-454B Refrigerant, 36000 Btu/hr BTU Cooling Rating, 17 SEER2
Rheem® RD16AY36AJVCA Universal Heat Pump, 3 ton Tonnage, R-454B Refrigerant, 36000 Btu/hr BTU Cooling Rating, 17 SEER2
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 392351
MPN: RD16AY36AJVCA
CPN:
| BTU Cooling Rating | : | 36000 Btu/hr |
| Coefficient of Performance (COP) | : | 3.3 |
| Compressor Type | : | Twin Rotary |
| Depth | : | 40-2/5 in |
| EER2 | : | 10.5 |
| Energy Star Certified | : | Yes |
| HSPF2 | : | 8.5 |
| Height | : | 31-4/5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 19 A |
| Model Number | : | RD16AY |
| Number of Rows | : | 2 |
| Packaged Depth | : | 48.43 in |
| Packaged Height | : | 38 in |
| Packaged Width | : | 22.05 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor® Line Classic Plus® Series |
| Product Weight | : | 146 lb |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 17 |
| Shipping Weight | : | 196 lb |
| Sound Level | : | 58 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 208-230 V |
| Width | : | 19-4/5 in |
Rheem® Universal Heat Pump, Tonnage: 3 ton, R-454B Refrigerant, BTU Cooling Rating: 36000 Btu/hr, SEER2: 17, EER2: 10.5, HSPF2: 8.5, Yes, 58 dBA Sound Level, 208-230 V, 1 ph Phase, 35 A Breaker Size, Endeavor® Line Classic Plus® Series, 3.3 Coefficient of Performance (COP), Twin Rotary Compressor, 3/8 in Liquid Line, 3/4 in Suction Line, 31-4/5 in Height, 19-4/5 in Width, 40-2/5 in Depth, Minimum Circuit Ampacity (MCA): 19 A, 2 Rows
- Sound Ranking2 - As low as 50 dBA
- EcoNet® Enabled - Yes
- Compressor Type - Inverter Driven, Variable Speed Twin Rotary
- Condenser Coil Type - 7mm
- Operating Range - Cooling - 50-125F, Heating - -22-70F
- PlusOne® Diagnostics - Bluetooth® technology aids in quick & easy service
- PlusOne® Variable Speed Twin Rotary Compressor and Inverter Drive
- PlusOne® Refrigerant Detection System™1- Integrated, patented design providing system protection and homeowner peace-of-mind with low GWP refrigerant monitoring
