| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating | : | 36,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.48 |
| Compressor Type | : | Rotary |
| Depth | : | 42.28 in |
| EER2 Range | : | 9.0-12.0 |
| EER2 | : | 9.0~10.0~11.0~12.0 |
| Energy Star Certified | : | Yes |
| HSPF2 Range | : | 7.5-8.5 |
| HSPF2 | : | 7.0~8.0 |
| Height | : | 46.38 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 25 A |
| Minimum Circuit Ampacity (MCA) | : | 24.5 A |
| Model Number | : | RD17AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 50 in |
| Packaged Height | : | 53.94 in |
| Packaged Width | : | 25 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 200 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14.3-19.0 |
| SEER2 | : | 14.0~15.0~16.0~17.0~18.0~19.0 |
| Shipping Weight | : | 271 lbs |
| Sound Level | : | 58 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 22.78 in |

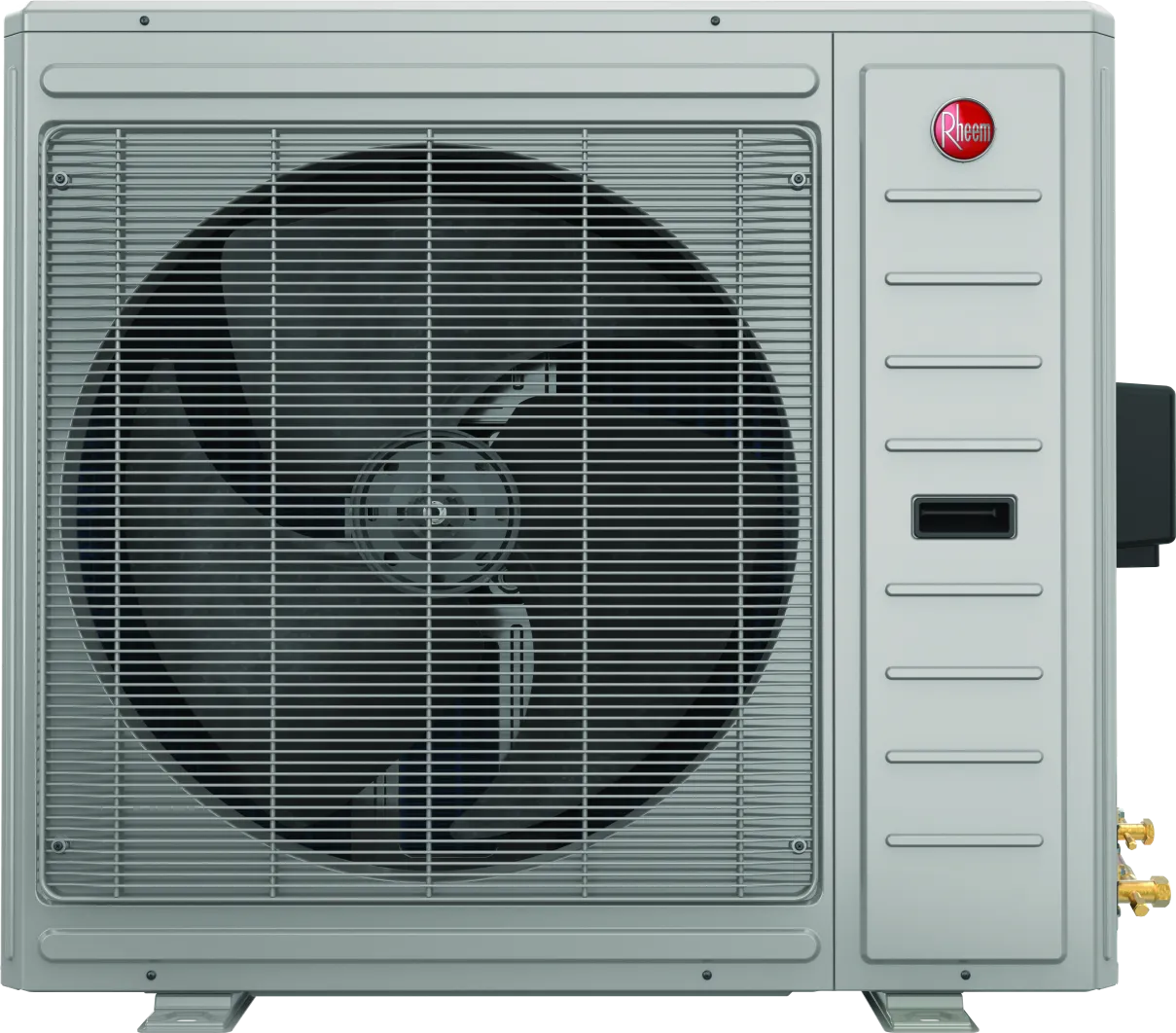

The Rheem® Endeavor Line Classic Plus Series Universal Heat Pump is an efficient and versatile solution for residential heating and cooling. Its inverter-driven, variable-speed compressor delivers precise comfort and humidity control while achieving high-efficiency ratings up to 19.0 SEER2.Designed for maximum installation flexibility, this unit is compatible with both modern EcoNet® enabled systems and legacy non-communicating equipment. Its compact, side-discharge footprint and advanced sound-dampening features make it an excellent choice for applications where space and quiet operation are critical.
- Universal Compatibility: Works with nearly any HVAC system, including Rheem® EcoNet® enabled systems and non-communicating systems, making it a flexible replacement option.
- Advanced Diagnostics: Features PlusOne® Diagnostics and Bluetooth® connectivity, allowing for advanced setup, monitoring, and troubleshooting through the Rheem® Contractor and EcoNet® Apps.
- Inverter-Driven Compressor: The PlusOne® variable-speed twin rotary compressor provides precise temperature and humidity control by operating from 45% to 100% capacity for greater efficiency.
- Quiet Performance: Engineered for quiet operation as low as 58 dB(A), utilizing features like a compressor sound blanket and swept-wing fan technology to minimize noise.
- Space-Saving Design: A compact, side-discharge footprint makes this unit an ideal solution for installations with space constraints, such as zero-lot-line properties or multi-family housing.
- Enhanced Coil Technology: The 7mm copper condenser coil requires less refrigerant, which contributes to a smaller, lighter unit and enhances system reliability.
