| BTU Cooling Rating | : | 48,000 BTU/h |
| BTU Heating Rating | : | 48,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.7 |
| Compressor Type | : | Rotary |
| Depth | : | 40.41 in |
| EER2 Range | : | 8.5-12.0 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0 |
| Energy Star Certified | : | Yes |
| HSPF2 Range | : | 7.5-10.0 |
| HSPF2 | : | 7.0~8.0~9.0~10.0 |
| Height | : | 58 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 40 A |
| Minimum Circuit Ampacity (MCA) | : | 38 A |
| Model Number | : | RD18AY |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 48.43 in |
| Packaged Height | : | 65.16 in |
| Packaged Width | : | 22.05 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Prestige |
| Product Weight | : | 296 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 14.3-19.0 |
| SEER2 | : | 14.0~15.0~16.0~17.0~18.0~19.0 |
| Shipping Weight | : | 347 lbs |
| Sound Level | : | 61 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 19.78 in |

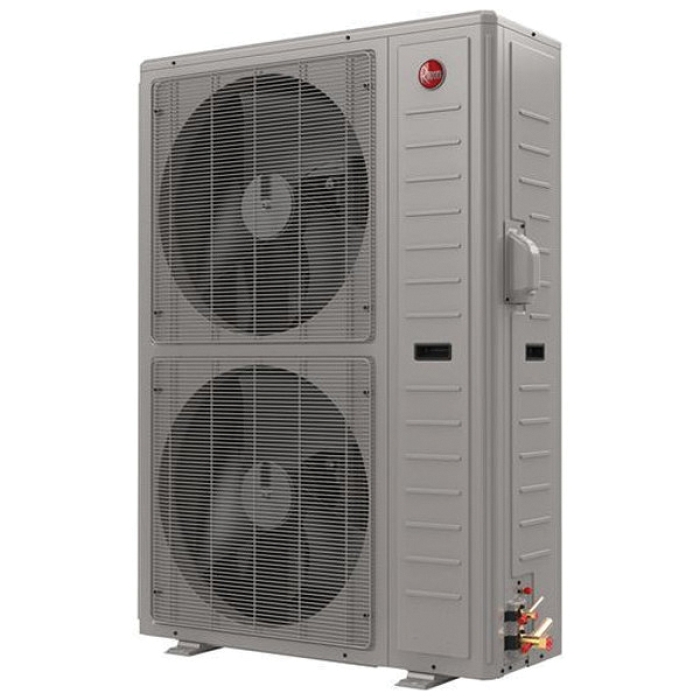

The Rheem® Endeavor Line Prestige Series RD18AY is a high-efficiency inverter heat pump designed for flexible application in residential systems. It offers universal compatibility, working seamlessly with both Rheem® EcoNet® communicating systems and traditional non-communicating HVAC equipment. This unit utilizes R-454B, a low Global Warming Potential (GWP) refrigerant, to meet modern environmental standards while delivering reliable heating and cooling.Featuring a compact, side-discharge design, this heat pump is an ideal solution for installations with space constraints without sacrificing performance. The variable-speed technology provides precise temperature control for enhanced comfort, achieves high efficiency ratings up to 19.0 SEER2, and ensures quiet operation for minimal disruption.
- Variable-Speed Compressor: Features a PlusOne® variable speed twin rotary compressor with inverter drive for precise temperature and humidity control, operating from 45% to 100% capacity.
- Advanced Diagnostics: Equipped with PlusOne® Diagnostics and Bluetooth® connectivity, allowing for easy setup, monitoring, and troubleshooting via the Rheem® Contractor and EcoNet® apps.
- Quiet Operation: Engineered for minimal noise with sound-dampening features including a compressor sound cover, swept-wing fan technology, and an innovative drive system.
- Smart System Integration: EcoNet® enabled for automatic system configuration and performance optimization when installed with compatible Rheem® system components.
- Refrigerant Safety: Includes the PlusOne® Refrigerant Detection System™, an integrated sensor and mitigation board that pauses operation if excess A2L refrigerant is detected.
- Installation Flexibility: Utilizes traditional refrigerant piping, allowing for the use of existing line sets to simplify replacement installations.
