| AFUE | : | 81 % |
| BTU Cooling Rating | : | 56,000 BTU/h |
| BTU Heating Input Rating | : | 100,000 BTU/h |
| BTU Heating Output Rating | : | 81,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 52.44 in |
| EER (Custom) | : | 11.0 |
| EER2 (Custom) | : | 10.0 |
| EER2 | : | 10.6 |
| EER | : | 11.0 |
| ENERGY STAR Certified | : | No |
| Fuel Type | : | Natural Gas |
| Height | : | 41 in |
| Minimum Circuit Ampacity (MCA) | : | 14 A |
| Model Number | : | RGEAZR |
| Number of Stages Cooling | : | Two-Stage |
| Number of Stages Heating | : | Single-Stage |
| Phase | : | 3 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 495 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 14.0 |
| SEER2 (Custom) | : | 13.4 |
| SEER2 | : | 13.0 |
| SEER | : | 14.0 |
| Shipping Weight | : | 503 lbs |
| Sound Level | : | 77 dB(A) |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 460 V |
| Width | : | 47.5 in |

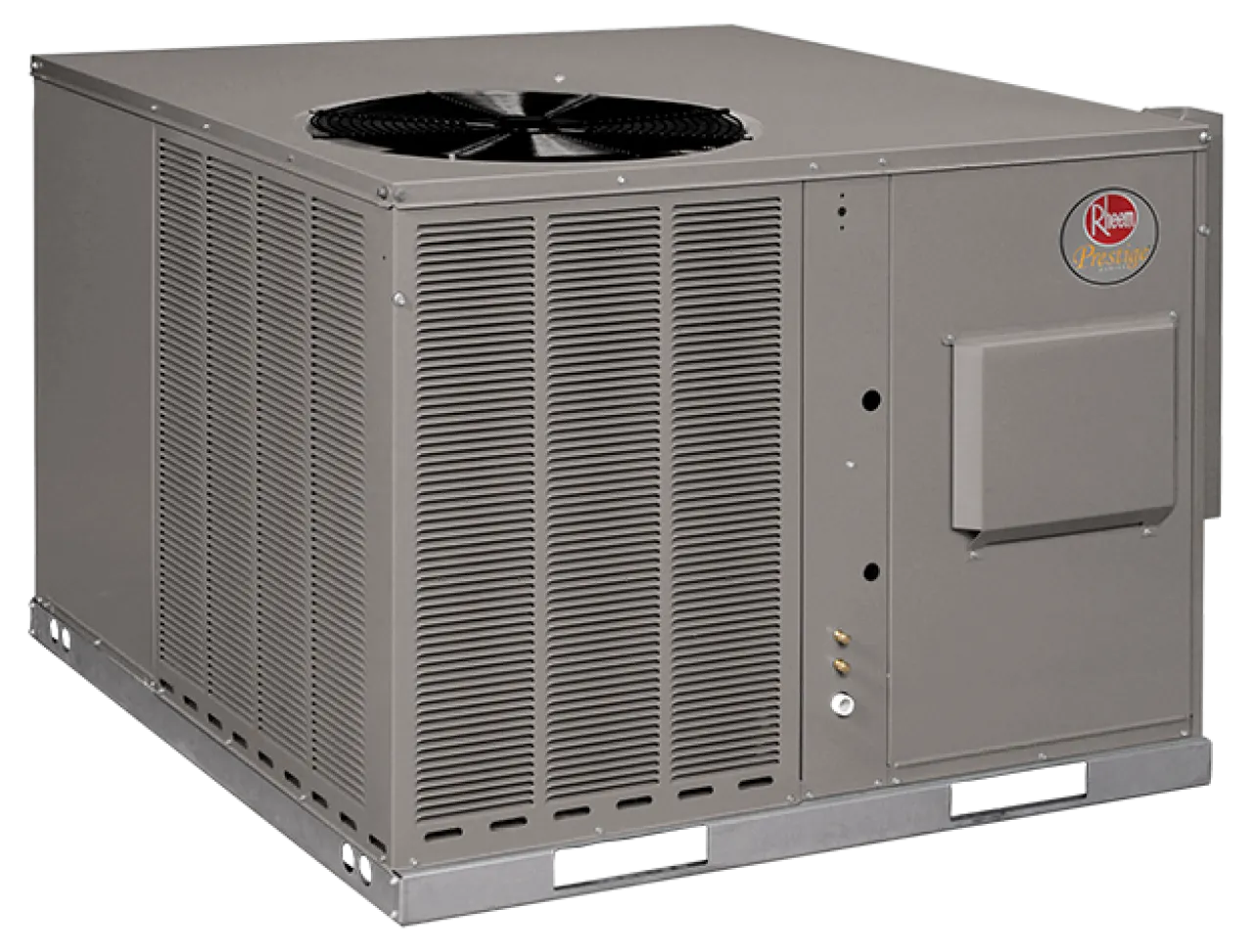

The Rheem Endeavor Line Classic RGEAZR Series is a packaged gas and electric unit designed for reliable performance in commercial applications. It delivers efficient, two-stage cooling with a scroll compressor and dependable single-stage gas heating to maintain consistent comfort.Built for durability and ease of service, this unit features a protective cabinet with louvered coil guards and a robust water management system. Technicians will appreciate the convenient access to internal components and single-point wiring that simplifies installation and maintenance.
Stainless Steel Heat Exchanger: Comes with a factory-installed stainless steel tubular heat exchanger for long-term durability and corrosion resistance.Efficient Cooling: Features a two-stage scroll compressor that provides quiet, efficient operation and enhanced comfort control.Advanced Coil Technology: Utilizes all-aluminum micro-channel evaporator and condenser coils that require less refrigerant and offer superior protection against corrosion.Installation Flexibility: Ships ready for horizontal application and is easily converted to a downflow configuration to suit various installation requirements.Service-Friendly Design: Engineered for easier maintenance with a slide-out blower, externally mounted refrigerant gauge ports, and an easily accessible control box.Superior Water Management: Built with a one-piece top, a double-sloped evaporator drain pan, and access panels with weep holes to prevent water intrusion.
