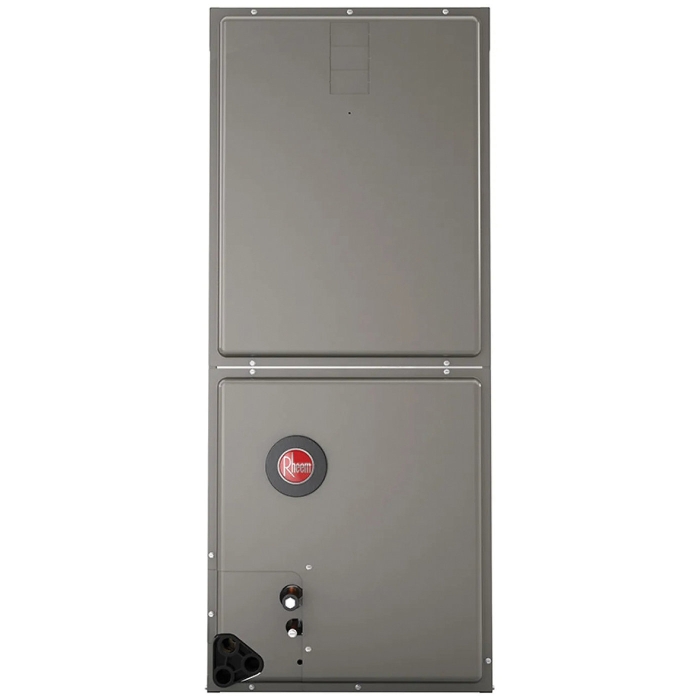

Rheem® Endeavor™ RH2TY4821STANNJ Air Handler, Tonnage: 4 ton, R-454B Refrigerant, 208/240 V, 1 ph, 2 Stages, 1600 cfm
Rheem® Endeavor™ RH2TY4821STANNJ Air Handler, Tonnage: 4 ton, R-454B Refrigerant, 208/240 V, 1 ph, 2 Stages, 1600 cfm
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 309517
MPN: RH2TY4821STANNJ
CPN:
| Air Flow Direction | : | Downflow, Horizontal, Upflow |
| BTU Cooling Rating | : | 48000 Btu/hr |
| CFM Airflow | : | 1600 cfm |
| Depth | : | 21.69 in |
| Filter Size | : | 20 x 20 in |
| Height | : | 50-1/2 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | RH2TY |
| Motor Type | : | ECM |
| Nominal Supplemental Electric Heat (kW) | : | 14.07 kW |
| Number of Speeds | : | 4 |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Product Family | : | Endeavor™ |
| Product Weight | : | 128 lb |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| SEER | : | 13.4 to 16 |
| Shipping Weight | : | 144 lb |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |
Rheem® Air Handler, Tonnage: 4 ton, R-454B Refrigerant, Downflow, Horizontal, Upflow Air Flow Direction, 208/240 V, 1 ph Phase, 2 Stages, 48000 Btu/hr Cooling, 21 in Width, 1600 cfm, TXV Refrigeration Control Type, Product Family: Endeavor™, 50-1/2 in Height, 21.69 in Depth, 3/8 in Liquid Line, 7/8 in Suction Line, ECM Motor, 14.07 kW Nominal Supplemental Electric Heat, 20 x 20 in Filter, 4 Speed, 13.4 to 16 SEER
- Quiet Operation - Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
- Aluminum Indoor Coil Design - Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
- Versatile 4-Way Convertible Compact Design - Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces
- Rugged Steel, Compact Cabinet Construction - Designed for added strength and versatility
- Field Installed Auxiliary Heater Kits - Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
- Less than 2% Cabinet Air Leakage at 1-inch H2O - When tested in accordance with ASHRAE Standard 193
- Mobile/Manufactured Home Capability - Designed to be suitable for installation in mobile/manufactured homes
