| BTU Cooling Rating (Custom) | : | 28,400 BTU/h |
| BTU Cooling Rating | : | 30,000 BTU/h |
| BTU Heating Rating (Custom) | : | 27,800 BTU/h |
| BTU Heating Rating | : | 30,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.4 |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER2 Range | : | 8.0-11.7 |
| EER2 | : | 8.0~9.0~10.0~11.0 |
| Energy Star Certified | : | No |
| HSPF2 Range | : | 6.1-7.5 |
| HSPF2 | : | 6.0~7.0 |
| Height | : | 27 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 20 A |
| Model Number | : | RP14AY |
| Number of Stages | : | Two-Stage |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 28.5 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 189 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 12.0-15.5 |
| SEER2 | : | 12.0~13.0~14.0~15.0 |
| Shipping Weight | : | 196 lbs |
| Sound Level | : | 72 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

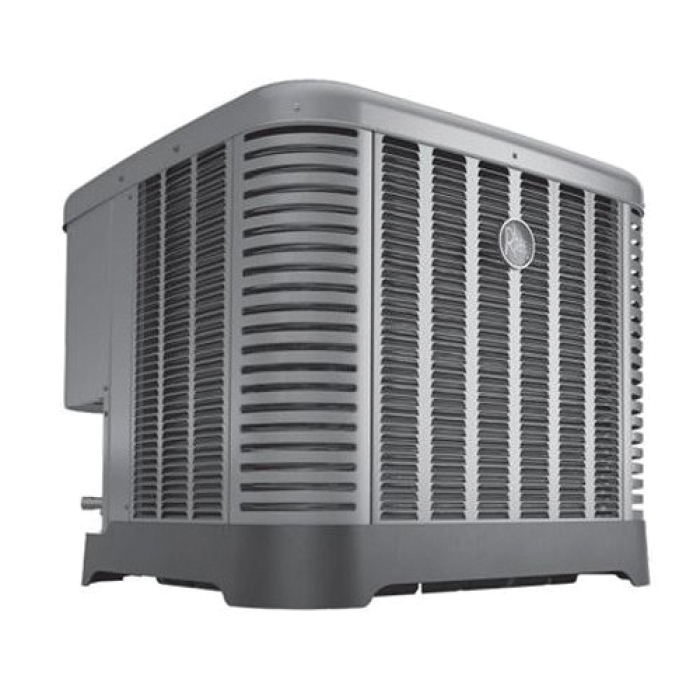

The Endeavor Line Classic Series RP14AY is a two-stage heat pump designed for reliable residential heating and cooling. It delivers precise temperature and humidity control by operating at two different capacities, enhancing comfort while improving energy efficiency compared to single-stage systems.Built for durability and quiet performance, this unit features a rugged cabinet with curved louvered panels and a corrosion-resistant composite base pan to protect internal components. It also incorporates sound-dampening features and design choices that prioritize long-term reliability and ease of service.
- Two-Stage Compressor:Features a two-stage scroll compressor with high and low speeds for precise temperature control, improved humidity management, and higher efficiency.
- Enhanced Serviceability:The Plus
- One® Triple Service Access provides a 15-inch wide corner access panel, while the Plus
- One® Expanded Valve Space offers 27 square inches of working area for easier repairs.
- Reliable Operation:An inverted reversing valve uses gravity-assisted shifting for faster heat transfer and reduced stress on joints, increasing system reliability.
- Low GWP Refrigerant:Utilizes R-454
- B refrigerant, which has a significantly lower Global Warming Potential (GWP) to meet modern environmental standards.
- Advanced Safety:The Plus
- One® Refrigerant Detection System™ features an integrated A2
- L sensor and mitigation board that automatically pauses operation if a refrigerant leak is detected.
