| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating | : | 34,200 BTU/h |
| Coefficient of Performance (COP) | : | 3.27 |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER2 (Custom) | : | 8.5-11.7 |
| EER2 | : | 8.0~9.0~10.0~11.0 |
| Energy Star Certified | : | Yes |
| HSPF2 (Custom) | : | 6.8-8.1 |
| HSPF2 | : | 6.0~7.0~8.0 |
| Height | : | 35 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 21 A |
| Model Number | : | RP14AZ |
| Number of Stages | : | Two-Stage |
| Packaged Depth | : | 37.64 in |
| Packaged Height | : | 38.35 in |
| Packaged Width | : | 37.64 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 202 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 (Custom) | : | 12.0-15.2 |
| SEER2 | : | 12.0~13.0~14.0~15.0 |
| Shipping Weight | : | 209 lbs |
| Sound Level | : | 72 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

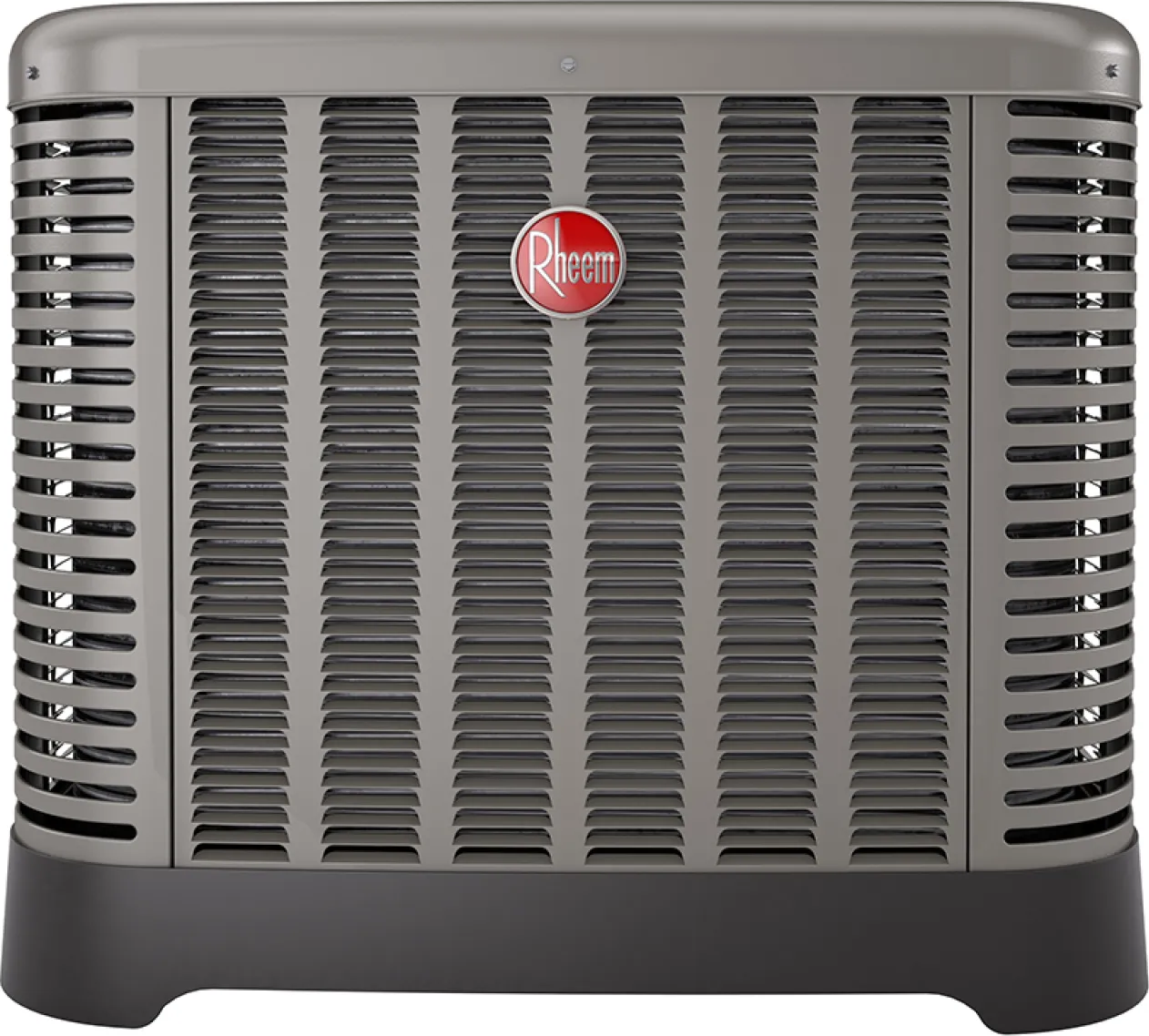

The Rheem Endeavor Line Classic Series RP14AZ is a 3.0-ton, two-stage heat pump designed to deliver dependable and efficient year-round comfort. This unit adjusts its output to match demand, providing consistent temperatures and improved humidity control while achieving a SEER2 rating of up to 15.2.As an ENERGY STAR certified model, it is engineered for long-term reliability and straightforward service. Its durable construction, including powder-coated paint and rust-resistant screws, is complemented by design elements that streamline installation and maintenance for HVAC professionals.
Two-Stage Compressor: A two-stage scroll compressor provides precise temperature control, enhanced humidity management, and improved efficiency.Quiet Operation: Features Swept Wing Fan Technology for quieter performance and improved unit acoustics.Reliable Reversing Valve: An inverted reversing valve design allows for faster heat transfer and reduces joint stress for increased system reliability.Expanded Valve Space: PlusOne® Expanded Valve Space provides a minimum of 27 square inches of working area for easier service access.Triple Service Access: PlusOne® Triple Service Access includes a 15-inch wide corner opening and removable panels, making repairs faster and simpler for technicians.
