| BTU Cooling Rating (Custom) | : | 22,800 BTU/h |
| BTU Cooling Rating | : | 24,000 BTU/h |
| BTU Heating Rating (Custom) | : | 22,600 BTU/h |
| BTU Heating Rating | : | 24,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.88 |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 Range | : | 8.5-12.0 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0 |
| Energy Star Certified | : | Yes |
| HSPF2 Range | : | 6.8-8.5 |
| HSPF2 | : | 6.0~7.0~8.0 |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 25 A |
| Minimum Circuit Ampacity (MCA) | : | 15 A |
| Model Number | : | RP15AZ |
| Number of Stages | : | Two-Stage |
| Packaged Depth | : | 33.25 in |
| Packaged Height | : | 27.9 in |
| Packaged Width | : | 33.25 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 150 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 12.0-16.4 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 157 lbs |
| Sound Level | : | 73 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

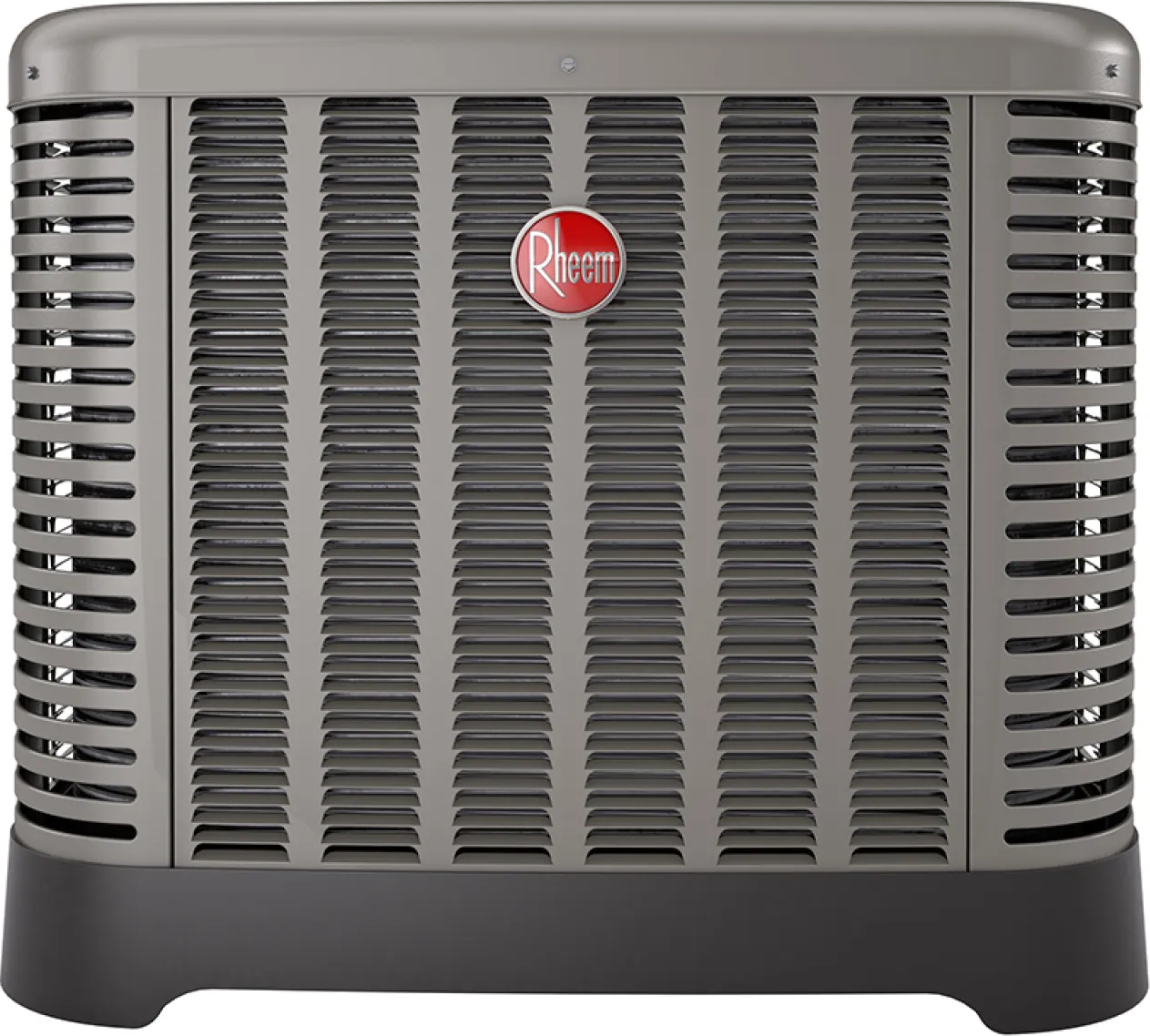

The Rheem Endeavor Line Classic Plus Series heat pump delivers efficient, reliable performance for residential applications. This 2.0-ton unit features a two-stage scroll compressor that provides precise temperature and humidity control, achieving an efficiency rating of up to 16.4 SEER2 for significant energy savings.Built for longevity and quiet operation, this heat pump is housed in a durable cabinet with a powder-coat paint system and a corrosion-resistant composite base pan. Its design incorporates sound-dampening technologies and service-friendly features to simplify installation and maintenance for HVAC professionals.
- Two-Stage Compressor:Features a two-stage scroll compressor with high and low speeds for precise temperature control, improved humidity management, and higher efficiency.
- Efficient Coil Design:Utilizes a 7 mm copper condenser coil that requires less refrigerant, enabling a more compact and lightweight unit with enhanced reliability.
- Reliable Reversing Valve:Equipped with an inverted reversing valve that uses gravity-assisted shifting for faster heat transfer and reduced stress on joints.
- Expanded Valve Space:Designed with Plus
- One® Expanded Valve Space, providing a minimum of 27 square inches of working area for easier service valve access.
- Simplified Maintenance:Features Plus
- One® Triple Service Access with a 15-inch wide corner opening and removable panels for faster, more convenient repairs.
