| Accuracy | : | 1 F |
| Ambient Temperature Rating | : | 32-105 F |
| Amperage Rating | : | 1~1.5 A |
| Auto Changeover | : | No |
| Auxiliary Heat Support | : | No |
| Battery Type | : | AA |
| Color | : | White |
| Compatible Models | : | PD411073 |
| Depth | : | 0.75 in |
| Differential Temperature | : | 0.2-2 F |
| Display Type | : | Backlit LCD |
| For Use With | : | HVAC Systems |
| Function Type | : | Temperature Control |
| Height | : | 4.438 in |
| Humidity Control | : | No |
| Humidity Rating | : | 90 % RH |
| Installation / Mounting Type | : | Wall Mount |
| Number of Fan Speeds | : | 1 |
| Number of Stages | : | 1H/1C |
| Package Quantity | : | 1 |
| Packaged Depth | : | 5.5 in |
| Packaged Height | : | 1.6 in |
| Packaged Width | : | 5.4 in |
| Power Source | : | Battery~Hardwired |
| Product Family | : | Pro1 |
| Setpoint Temperature Range | : | 44-90 F |
| Shipping Weight | : | 0.8 lbs |
| Terminal Designations | : | Rc~Rh~C~W~Y~G~B~O |
| Voltage Rating | : | 24 V |
| Width | : | 4.75 in |

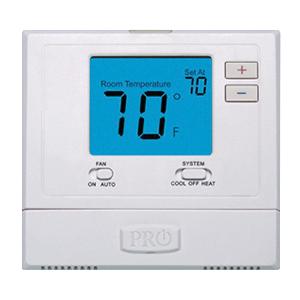

The Pro1 T701 is a straightforward and reliable non-programmable thermostat designed for single-stage HVAC systems. It is compatible with both 1H/1C conventional (gas/electric) and heat pump systems, offering a versatile solution for basic temperature control.Built for the professional, this thermostat prioritizes ease of installation and use with its large, easy-to-read backlit display and simple interface. With dual power options and installer-friendly features, it provides a dependable and affordable solution for residential applications.
Clear Display: Features a large, 4-inch screen with a blue backlight and a glow-in-the-dark light button for easy visibility in all conditions.Flexible Power: Offers dual power capability, allowing it to be run on batteries or hardwired to a 24V system for installation versatility.Easy Installation: Designed with color-coded terminal blocks and a universal sub-base for straightforward mounting on a wall or junction box.System Protection: Includes a selectable 5-minute compressor delay to protect equipment from short cycling and extend its service life.Precise Adjustments: Allows for separate heating and cooling swing adjustments (cycle rate) and room temperature calibration for customized comfort.User-Friendly Design: An easy-access battery compartment simplifies maintenance, while simple controls make operation intuitive.
