| Accuracy | : | 1 F |
| Ambient Temperature Rating | : | 32-105 F |
| Amperage Rating | : | 1.5 A |
| Auto Changeover | : | No |
| Auxiliary Heat Support | : | Yes |
| Battery Type | : | AA |
| Color | : | White |
| Compatible Models | : | PD411073 |
| Depth | : | 1.25 in |
| Differential Temperature | : | 0.2-2 F |
| Display Type | : | Backlit LCD |
| For Use With | : | HVAC Systems |
| Function Type | : | Temperature Control |
| Height | : | 4.438 in |
| Humidity Control | : | No |
| Humidity Rating | : | 90 % RH |
| Installation / Mounting Type | : | Wall Mount |
| Number of Fan Speeds | : | 1 |
| Number of Stages | : | 2H/1C |
| Package Quantity | : | 1 |
| Packaged Width | : | 5.5 in |
| Power Source | : | Battery~Hardwired |
| Product Family | : | Pro1 |
| Setpoint Temperature Range | : | 44-90 F |
| Shipping Weight | : | 0.684 lbs |
| Terminal Designations | : | R~C~Y~O~W2~B~G~E |
| Voltage Rating | : | 18-30 V |
| Width | : | 4.75 in |

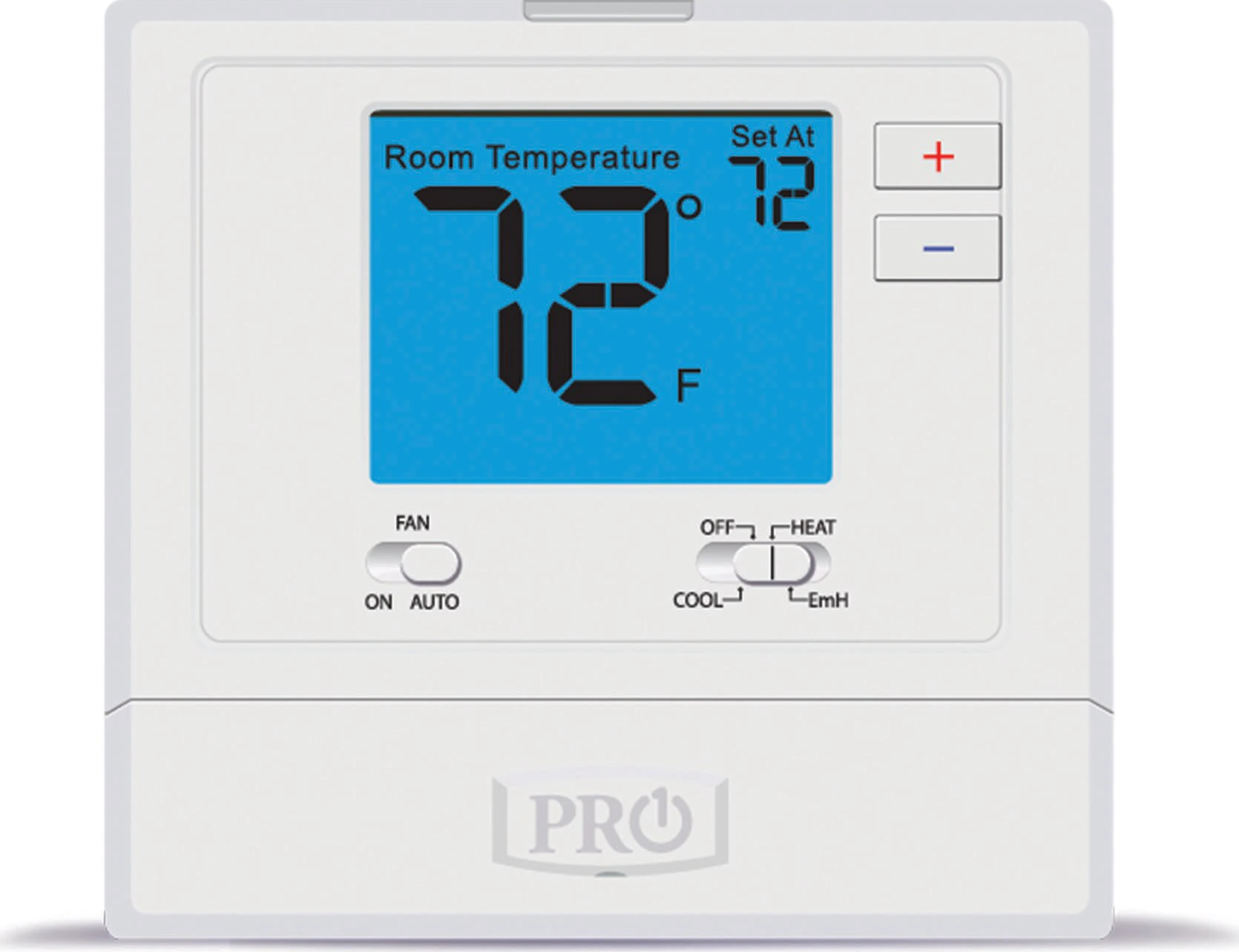

This Pro1 non-programmable thermostat provides reliable, straightforward control for 2-stage heat, 1-stage cool heat pump systems. It features a large, 4-square-inch backlit LCD that ensures temperature readings are easy to see. Designed for professional installers, this model offers simple, intuitive operation without complex programming.Installation is made flexible with dual power options, allowing the unit to be hardwired or battery-operated. The thermostat is electric or gas configurable and can be mounted directly on a wall or junction box, providing versatility for various HVAC setups.
Large Display: Features a bright, 4-square-inch display with a blue backlight for clear visibility in any lighting condition.Glow-in-the-Dark Button: Includes a user-friendly light button that glows in the dark for easy operation in low-light environments.Flexible Power Options: Offers dual power capability, running on either batteries or a hardwired 18-30V connection to suit the installation.Compressor Protection: A selectable 5-minute compressor delay helps prevent short-cycling and protects the HVAC system from damage.Maintenance Reminder: Equipped with a selectable filter change indicator to help ensure optimal system performance and efficiency.Easy Battery Access: Designed with an accessible battery compartment for simple and fast battery changes without removing the thermostat from the wall.
