| Accuracy | : | 1 F |
| Ambient Temperature Rating | : | 32-105 F |
| Amperage Rating | : | 1.5 A |
| Auto Changeover | : | Yes |
| Auxiliary Heat Support | : | Yes |
| Battery Type | : | AA |
| Color | : | White |
| Compatible Models | : | PD411073 |
| Depth | : | 1.25 in |
| Differential Temperature | : | 0.2-2 F |
| Display Type | : | Backlit LCD |
| For Use With | : | HVAC Systems |
| Function Type | : | Temperature Control |
| Height | : | 4.438 in |
| Humidity Control | : | No |
| Humidity Rating | : | 90 % RH |
| Installation / Mounting Type | : | Wall Mount |
| Number of Fan Speeds | : | 1 |
| Number of Stages | : | 3H/2C |
| Package Quantity | : | 1 |
| Packaged Depth | : | 5.5 in |
| Packaged Height | : | 1.6 in |
| Packaged Width | : | 5.4 in |
| Power Source | : | Battery~Hardwired |
| Product Family | : | Pro1 |
| Setpoint Temperature Range | : | 44-90 F |
| Shipping Weight | : | 0.8 lbs |
| Terminal Designations | : | Rh~Rc~C~Y~Y2~W/E~W2~G~B~O |
| Voltage Rating | : | 24 V |
| Width | : | 4.75 in |

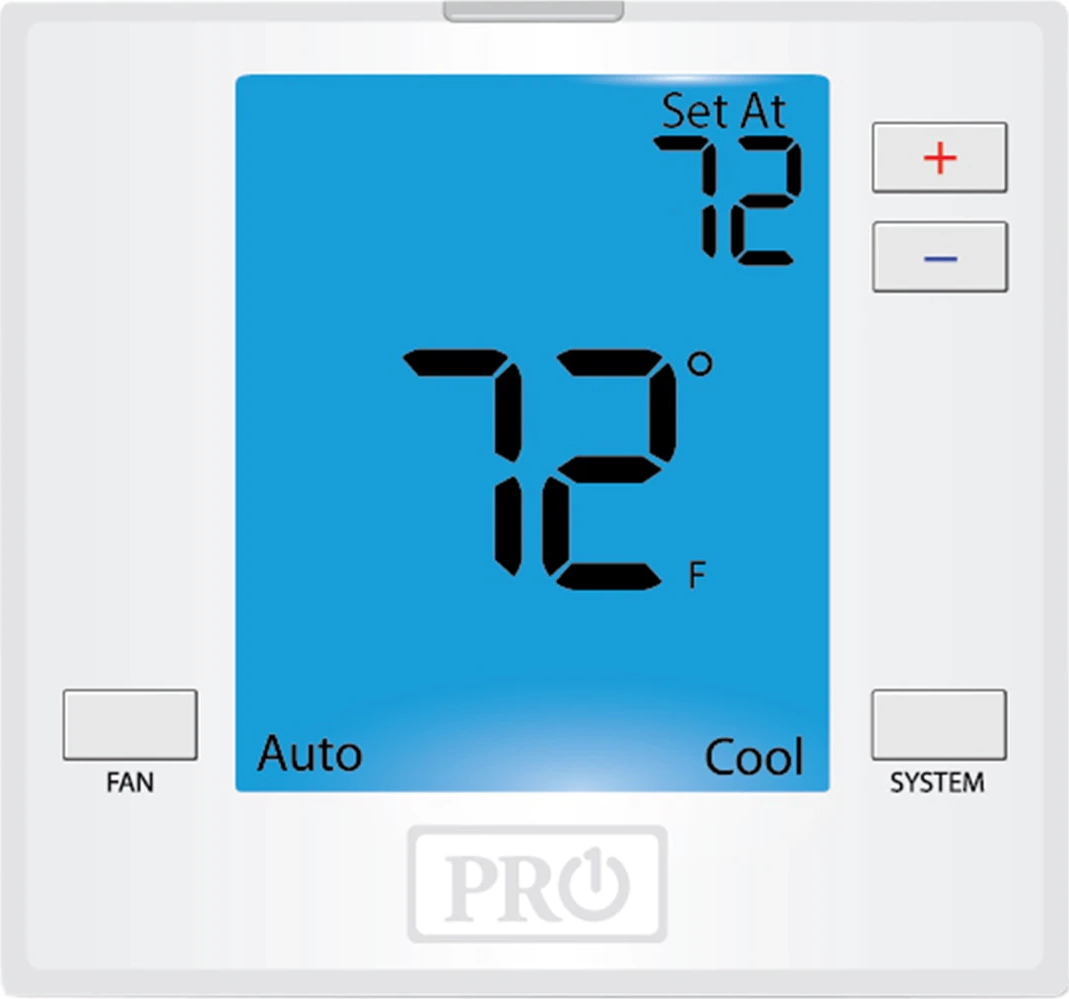

The Pro1 T751 is a universal non-programmable thermostat designed for professional HVAC technicians seeking reliability and ease of use. It provides straightforward temperature control for both conventional and heat pump systems, making it a versatile choice for a wide range of applications.Engineered for convenience, this thermostat can be wall-mounted or installed on a junction box. It offers practical features like adjustable setpoint limits, ensuring precise and dependable comfort management for the end-user.
Large Display: Features a 7 sq. in. display with a blue backlight for clear visibility in any lighting condition.Dual Power: Operates using either AA batteries or a 24V hardwired connection to suit various installation requirements.System Protection: Includes a 5-minute selectable compressor delay to protect HVAC equipment from short cycling.Installer Friendly: Equipped with a glow-in-the-dark light button, easy-to-wire color-coded terminal blocks, and a universal sub-base for simple installation.Precise Calibration: Allows for room temperature calibration adjustments and separate heating and cooling swing settings for customized comfort.Universal Compatibility: Works with conventional systems up to 2-heat/2-cool and heat pump systems up to 3-heat/2-cool.
