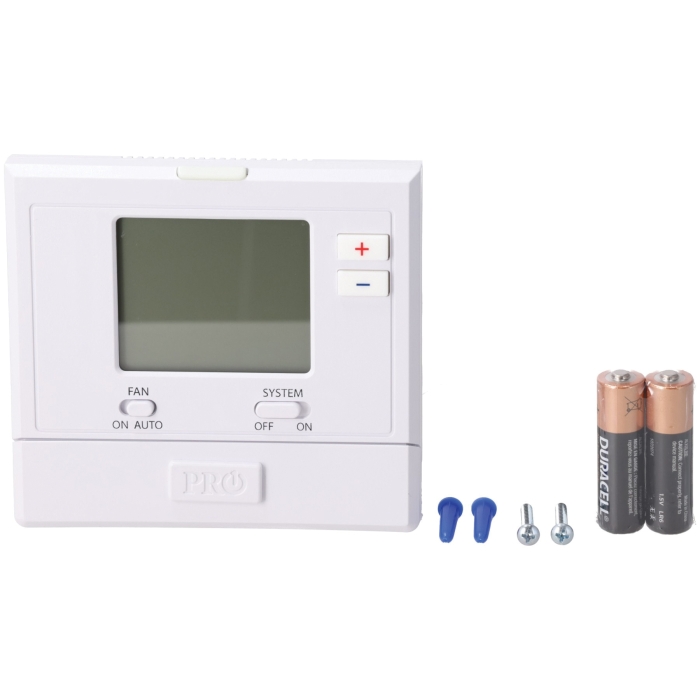

Rheem® T771 Thermostat, 1H/1C Stages, Auto Changeover: No, Battery, Hardwired Power Source, LCD Display, 4-3/4 in Width
Rheem® T771 Thermostat, 1H/1C Stages, Auto Changeover: No, Battery, Hardwired Power Source, LCD Display, 4-3/4 in Width
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 302899
MPN: T771
CPN:
| Auto Changeover | : | No |
| Depth | : | 1-1/4 in |
| Display Type | : | LCD |
| Height | : | 4-7/16 in |
| Number of Stages | : | 1H/1C |
| Power Source | : | Battery, Hardwired |
| Terminal Designations | : | C, G, R, Y/W |
| Width | : | 4-3/4 in |
T771 non-programmable PRO1® thermostats are single stage, reliable thermostats offered at an affordable price. Designed for cool only or heat only thermostat HVAC applications, the PRO1 replacement thermostat is designed to be battery operated or hardwired in AC installations and can be mounted on walls or junction boxes for a secure hold.
Rheem® Thermostat, 1H/1C Stages, Auto Changeover: No, Battery, Hardwired Power Source, LCD Display, C, G, R, Y/W Terminal Designations, 4-7/16 in Height, 4-3/4 in Width, 1-1/4 in Depth
- Cool only or heat only thermostat applications
- Set HVAC unit point range from 25 degrees Fahrenheit to 90 degrees F
- Ideal for garage thermostat installation
- Includes millivolt [mV] heating
- Set point limits (meets building codes for garage applications)
- 4 inch LCD screen display
- Universal sub-base
- Glow in the dark button for ease of visibility
- Mounts on wall or junction box
- Battery or 24 voltage power
- Size W x H x D (in.):4-3/4 x 4-7/16 x 1-1/4
