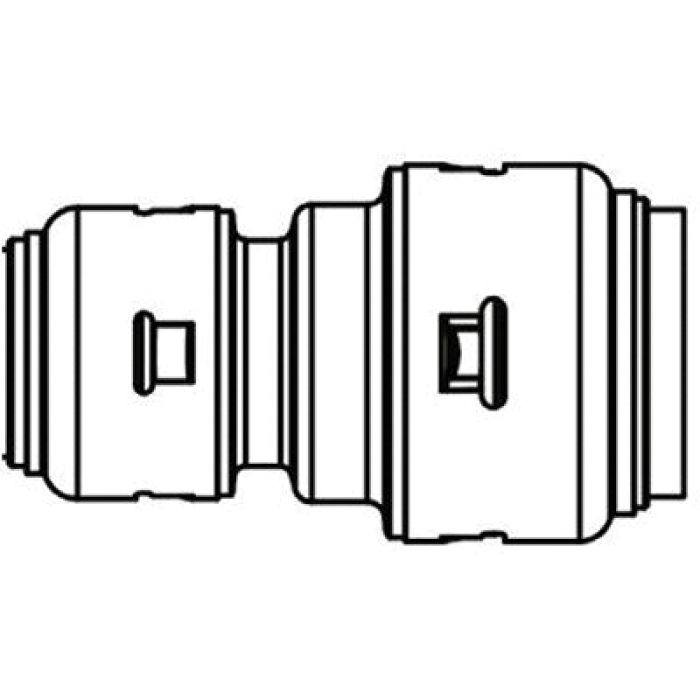

SharkBite™ SharkBite Max™ UR058 Reducing Coupling, 3/4 in, Push-to-Connect, Reducing Coupling, 1/2 in, Push-to-Connect
SharkBite™ SharkBite Max™ UR058 Reducing Coupling, 3/4 in, Push-to-Connect, Reducing Coupling, 1/2 in, Push-to-Connect
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Push-to-Connect |
| Connection Type 2 | : | Push-to-Connect |
| Fitting Type | : | Reducing Coupling |
| Material Construction | : | DZR Brass |
| Material | : | Brass |
| Maximum Working Pressure | : | 400 psi |
| NSF Certified | : | Yes |
| Operating Temperature Rating | : | 200 deg F |
| Product Family | : | SharkBite Max™ |
| Reducing | : | Yes |
SharkBite Max™ Fittings provide quick, reliable connections for residential and commercial plumbing systems. Engineered with stainless steel retainers, these fittings are rated for up to 400 psi and offer lower insertion effort than previous SharkBite brass push-to-connect fittings. SharkBite Max™ fittings are compatible with PEX, copper, CPVC, PE-RT, and HDPE piping and are available in sizes from 1/2" to 2", supporting a wide range of applications, including larger diameter installations. For fittings 1-1/4" and larger, a PEX tube liner is required when used with PEX piping. Tube liners are not required for PEX applications 1" and below. HDPE installations require a tube stiffener (sold separately by the HDPE manufacturer).
SharkBite™ Reducing Coupling, Reducing Coupling, 3/4 in, Push-to-Connect, Yes, 1/2 in, Push-to-Connect, Material Construction DZR Brass, Yes, 400 psi Max Working Pressure, 200 deg F, SharkBite Max™, Brass
