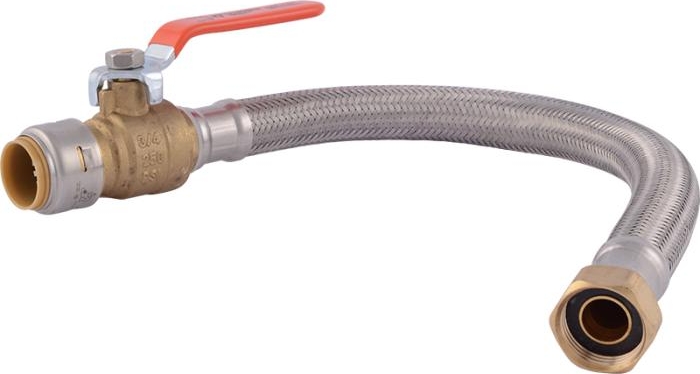

SharkBite™ UR3088FX18BV SharkBite Max 3/4 x 3/4 Water Heater Connector w/ Ball Valve - FPT x Push-to-Connect
SharkBite™ UR3088FX18BV SharkBite Max 3/4 x 3/4 Water Heater Connector w/ Ball Valve - FPT x Push-to-Connect
Manufacturer: Reliance Worldwide Corporation
Brand: SharkBite™
Part #: 303118
MPN: UR3088FX18BV
CPN:
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Sizes (Custom) | : | 3/4~3/4 in |
| Connection Type 1 | : | FPT |
| Connection Type 2 | : | Push-to-Connect |
| Connection Types (Custom) | : | FPT~Push-to-Connect |
| Diameter | : | 2.4 in |
| For Use With | : | Water Heater |
| Function Type | : | Water Heater Connector |
| Length | : | 18 in |
| Material | : | Stainless Steel~Brass |
| Maximum Working Pressure | : | 200 PSI |
| Operating Temperature Rating | : | 140 F |
| Product Family | : | SharkBite Max |
| Product Type | : | Water Heater Connector w/ Ball Valve |
| Width | : | 2.4 in |
This flexible braided connector from SharkBite simplifies water heater installations, especially in tight spaces or where existing pipes don't perfectly align. The innovative push-to-connect design allows for a secure, tool-free connection to various pipe types, reducing installation time and the need for additional fittings.The integrated full-port ball valve provides a convenient shutoff point for future service and maintenance. Approved for use on both gas and electric water heaters, this connector is built from durable materials for reliable, long-term performance in residential and commercial applications.
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- Fitting body is high performance DZR lead-free brass
- Can be rotated after installation
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
