| Applicable Media | : | Water |
| Body Material | : | Bronze |
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Flow Coefficient | : | 54.3 Cv |
| Lead-Free Compliant | : | Yes |
| Maximum Working Pressure | : | 200 psi |
| NSF Specifications | : | Yes |
| Nominal Size | : | 1 in |
| Operating Temperature Rating | : | 0 to 250 deg F |
| Port Type | : | Full |
| Seal Material | : | EPDM |
| Valve Type | : | Ball |

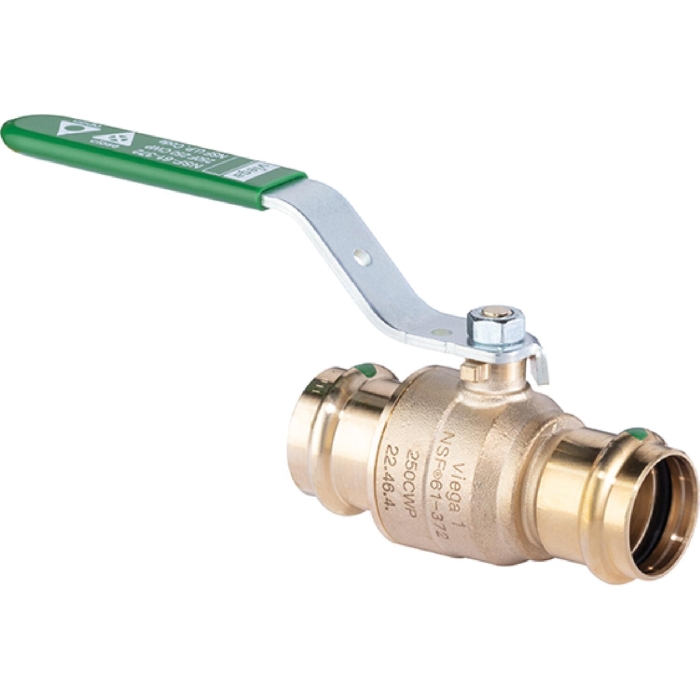

The ProPress two-piece ball valve is equipped with a full port, lead-free bronze body. The ball valve features EPDM sealing elements, EPDM stem seals, and Viega's Smart Connect® technology for easy identification of unpressed connections during pressure testing. Applications for this valve include commercial and residential potable water.
Viega Ball Valve, Ball Valve, 1 in Nominal, 1 in Connection Size 1, Connection Type 1: Press, 1 in Connection Size 2, Connection Type 2: Press, Bronze Body, EPDM Seal, Applicable Media: Water, Full Port, 200 psi Maximum Working Pressure, 0 to 250 deg F Operating Temperature, 54.3 Cv Flow Coefficient, NSF Specifications: Yes, Lead-Free Compliant: Yes
- 316 stainless steel ball
- Eco Brass® blowout-proof stem
- Smart Connect technology
- Non-locking metal handle
