WOLVERINE BRASS® 80752 Potable Expansion Tank, Hot Water Storage Tank, 4.5 gal Capacity, 3/4 in Connection, Steel Body
WOLVERINE BRASS® 80752 Potable Expansion Tank, Hot Water Storage Tank, 4.5 gal Capacity, 3/4 in Connection, Steel Body
| Acceptance Volume | : | 2.8 gal |
| Body Material | : | Steel |
| Capacity | : | 4.5 gal |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Diameter | : | 11 in |
| Function Type | : | Tank |
| Length | : | 15 in |
| Maximum Working Pressure | : | 150 psi |
| Product Weight | : | 8 lb |
| Tank Type | : | Hot Water Storage |

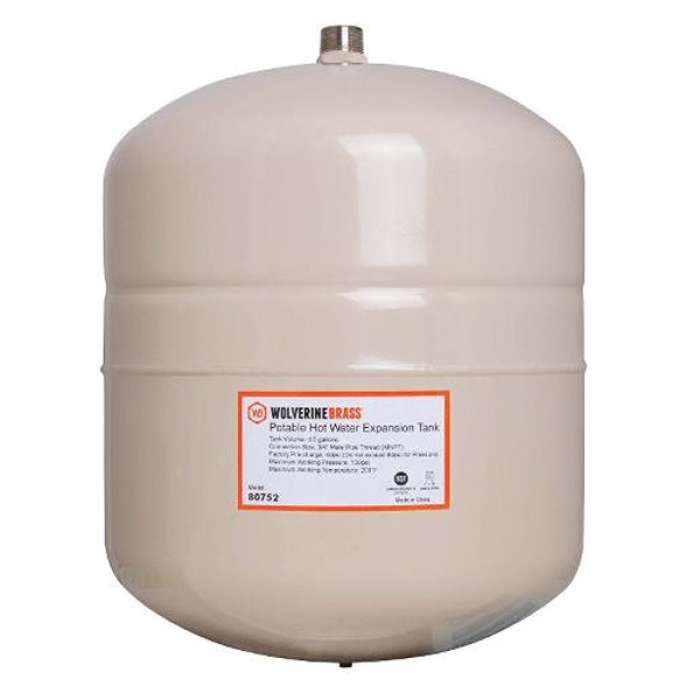

The Wolverine Brass 4.5 gallon potable water expansion tank has a carbon steel tank with 3/4" NPT stainless steel connections. The expansion tank controls the thermal expansion forces within hot water heating systems as water heats up and prevents system pressure from getting to high. The tank utilizes a heavy duty diaphragm to prevent corrosion and waterlogging. The product comes with a factory pre-set pressure of 35 psi with a max operating pressure of 150 psi and a max air-charge of 80 psi. Wolverine Brass portable water expansion tanks are certified to ANSI Z1088 & NSF 61 and have a 6 year warranty.
WOLVERINE BRASS® Potable Expansion Tank, Hot Water Storage Tank, 4.5 gal Capacity, 3/4 in Connection, Connection Type: NPT, Steel Body, 150 psi Maximum Working Pressure, 2.8 gal Acceptance Volume, 15 in Length, 11 in Diameter, Tank Function Type
- 4.5 gallon tank volume
- For use with potable water systems
- Maximum Temperature of 200 degF
- UPC certified to ANSI Z1088 & ANSI/NSF 61
- Maximum Air-Charge 80 psi
