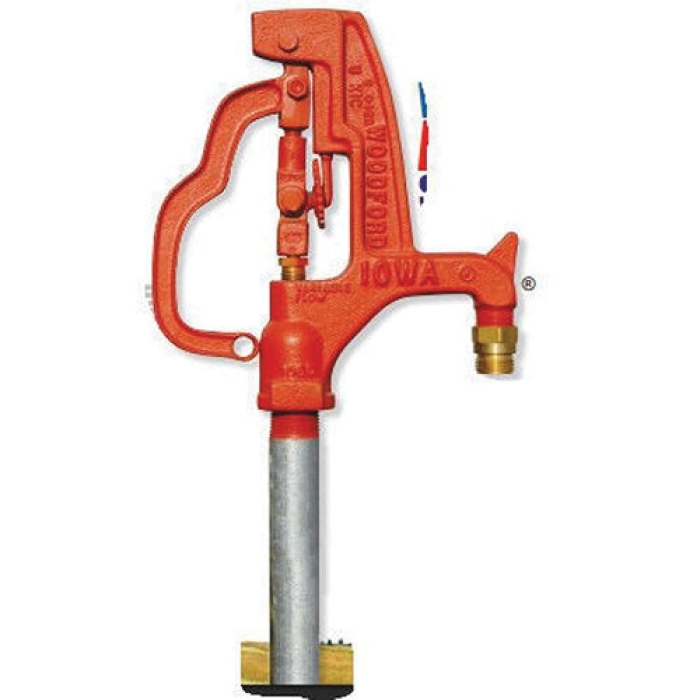

WOODFORD® Y34-2 Yard Hydrant, 3/4 in Inlet, FNPT Inlet, 3/4 in Outlet, Male Hose Threaded Outlet, 60-1/2 in L
WOODFORD® Y34-2 Yard Hydrant, 3/4 in Inlet, FNPT Inlet, 3/4 in Outlet, Male Hose Threaded Outlet, 60-1/2 in L
| Bury Depth | : | 2 ft |
| Inlet Connection Size | : | 3/4 in |
| Inlet Connection Type | : | FNPT |
| Lead-Free Compliant | : | No |
| Length | : | 60-1/2 in |
| Maximum Working Pressure | : | 125 psi |
| Operating Temperature Rating | : | 120 deg F |
| Outlet Connection Size | : | 3/4 in |
| Outlet Connection Type | : | Male Hose Threaded |
| Product Family | : | Model Y34, IOWA® |
The Woodford Y34 yard hydrant has been an American icon for over eight decades. Every day, from the suburbs to the most remote farms, from the searing heat of a Texas summer to brutal Dakota winters, Y34s are delivering precious water reliably and efficiently. They won't freeze. Repairs-not that they're often needed-can be made without removing the hydrant. Parts are always available. And, this American icon is made in America. Just like it has been since 1929.
WOODFORD® Yard Hydrant, 3/4 in Inlet, FNPT Inlet, 3/4 in Outlet, Male Hose Threaded Outlet, 60-1/2 in L, 2 ft Bury Depth, 120 deg F, 125 psi Max Working Pressure, No, Model Y34, IOWA®
- Since 1929, The Woodford IOWA® yard hydrant is the Choice of Professionals
- "Immediate-flow, even in sub-zero temperatures"
- Automatic draining: Will not freeze when shut-off valve is properly installed below frost line and all devices are removed from the nozzle
- 1 inch hot-dipped American seamless Schedule 40 galvanized pipe casing
- Rod guide eliminates side pull on rod and reduces wear on packing, packing nut and stem
- Flow-finder and lock automatically sets the same flow each time or can be locked against accidental opening
- Adjustable link provides easy and positive adjustment of the lever lock tension
- Graphite packing for lubricity and long life
- One-piece variable flow plunger includes drain feature where plunger opens drain to prevent freezing and closes at any flow to prevent wasting water
- All repairs can be made at the top of the unit (RK-Y34) without removing hydrant from the ground
