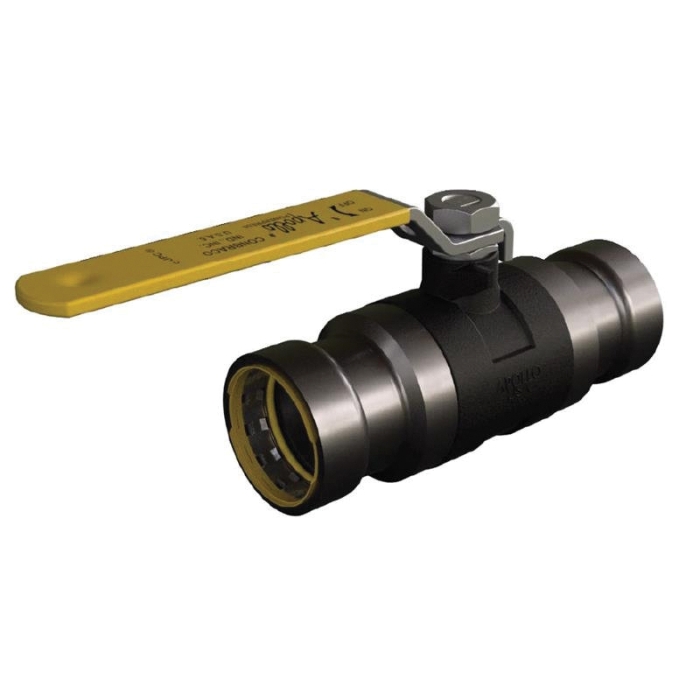

Apollo® PowerPress® 89FVH4301 Ball Valve, Ball Valve, 1/2 in Nominal, 1/2 in Connection Size 1, 1/2 in Connection Size 2

Apollo® PowerPress® 89FVH4301 Ball Valve, Ball Valve, 1/2 in Nominal, 1/2 in Connection Size 1, 1/2 in Connection Size 2

Manufacturer: Aalberts Integrated Piping Systems
Brand: Apollo®
Part #: 309311
MPN: 89FVH4301
CPN:
ASTM Specifications      :      Yes
Applicable Media      :      Gas
Body Material      :      Steel
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Press
Connection Type 2      :      Press
Length      :      9-1/2 in
Maximum Working Pressure      :      125 psi
Nominal Size      :      1/2 in
Operating Temperature Rating      :      -40 to 194 deg F
Package Quantity      :      1 Carton
Port Type      :      Full
Product Family      :      PowerPress® 89FV Series
Product Weight      :      0.59 lb
Seal Material      :      EPDM
Top to Inlet Center      :      1.74 in
UL Listed      :      Yes
Valve Type      :      Ball
Width      :      4.16 in

The Apollo PowerPress® 89FV Ball Valves, constructed in the USA, are distinguished by their patented green or yellow visual control ring and EPDM sealing element. These valves provide a full-port flow and adjustable stem packing, delivering maximum efficiency and reliable performance. The valves are compatible with Ridgid®and Milwaukee press tools and come with the innovative Leak Before Press® technology. With a blowout-proof stem and corrosion-resistant materials, they ensure durability and longevity. Every valve is 100% factory tested to maintain high-quality standards. The assembly process is silicone-free. They are ARRA compliant, affirming their commitment to quality and value.

Apollo® Ball Valve, Ball Valve, 1/2 in Nominal, 1/2 in Connection Size 1, Connection Type 1: Press, 1/2 in Connection Size 2, Connection Type 2: Press, Steel Body, EPDM Seal, Applicable Media: Gas, Full Port, 125 psi Maximum Working Pressure, -40 to 194 deg F Operating Temperature, 9-1/2 in Length, 4.16 in Width, ASTM Specifications: Yes, UL Listed: Yes, Product Family: PowerPress® 89FV Series, 1.74 in Top to Inlet Center

  • Patented Visual Control Ring (Green)
  • EPDM Sealing Element
  • Full-Port Flow
  • Adjustable Stem Packing
  • Fast, Reliable, Economical Press Installation
  • Leak Before Press®Technology
  • Blowout-Proof Stem
  • Corrosion Resistant Materials
  • 100% Factory Tested
  • Silicone Free Assembly
  • Catalog https://www.clsupplyhvac.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_89FVH4301_Catalog.pdf
