| Amperage Rating | : | 2.1 A |
| Depth | : | 5.5 in |
| Enclosure Type | : | TEAO |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 9.73 in |
| Motor HP | : | 1/6~1/3 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 2 |
| Package Quantity | : | 1 |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1.00 |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 5 in |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.5 in |

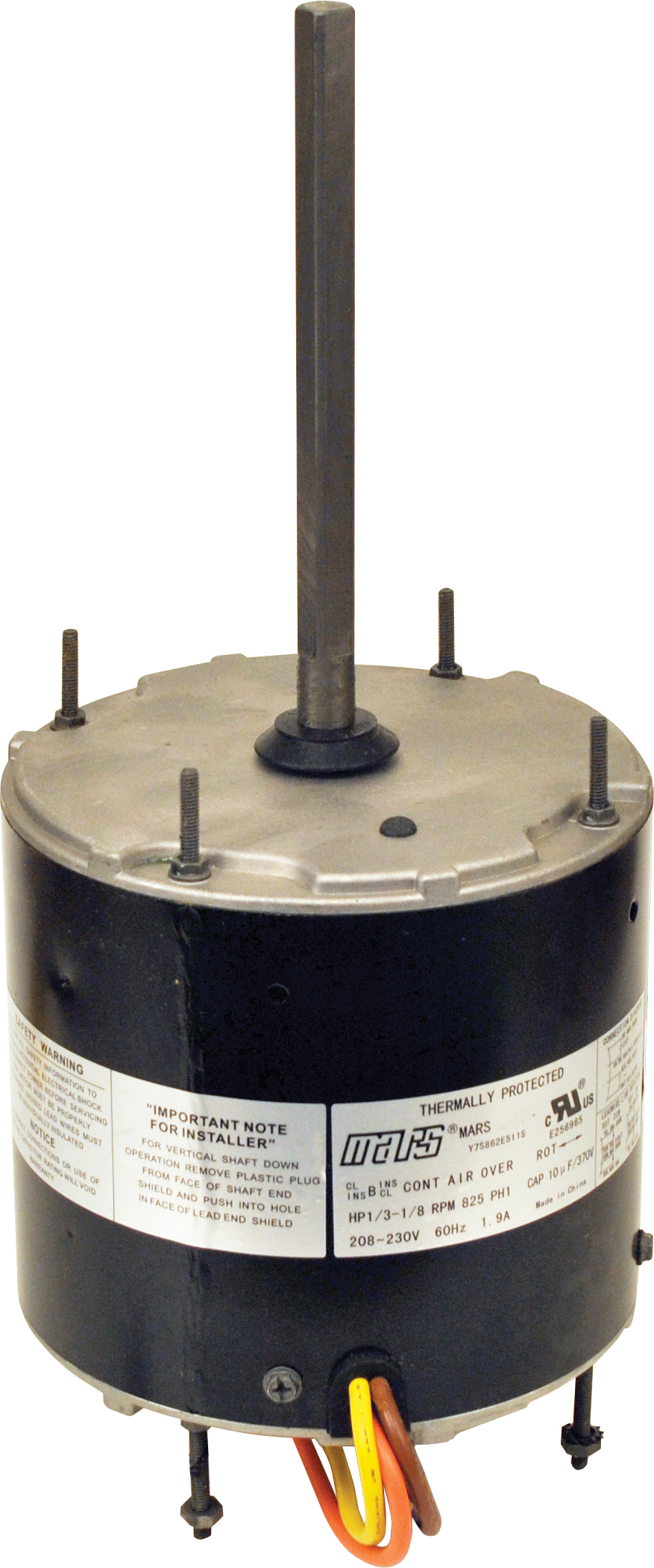

This Mars multi-horsepower motor is a versatile PSC replacement designed for HVAC service professionals. Built for reliability in outdoor environments, it consolidates four common horsepower ratings from 1/6 to 1/3 HP into a single, convenient unit.Suitable for a wide range of air conditioning and heat pump applications, this motor offers flexible installation options and is constructed with durable components to ensure a long service life.
Versatile Performance: Covers four horsepower ratings (1/6, 1/5, 1/4, and 1/3 HP) in a single, two-speed unit, making it ideal for truck stock.Flexible Installation: Supports both thru-bolt and band mounting and includes pre-installed screws in Rheem mounting holes for convenience.Durable Construction: Features a totally enclosed air-over (TEAO) design and all-angle ball bearings for reliable, long-term operation.Enhanced Protection: Equipped with a water slinger on the shaft to protect the motor from moisture in outdoor condenser units.Reversible Rotation: Offers easily reversible rotation to accommodate a wide variety of system configurations.
