| Amperage Rating | : | 3.6 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | RQLA~RQMA~RSMA |
| Depth | : | 5.625 in |
| Enclosure Type | : | Open |
| For Use With | : | HVAC Equipment |
| Function Type | : | Blower Motor |
| Height | : | 9.625 in |
| Motor HP | : | 1/6~1/2 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Shafts | : | 1 |
| Number of Speeds | : | 4 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 19 in |
| Packaged Height | : | 7.2 in |
| Packaged Width | : | 7.25 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 4 in |
| Shipping Weight | : | 14.29 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |

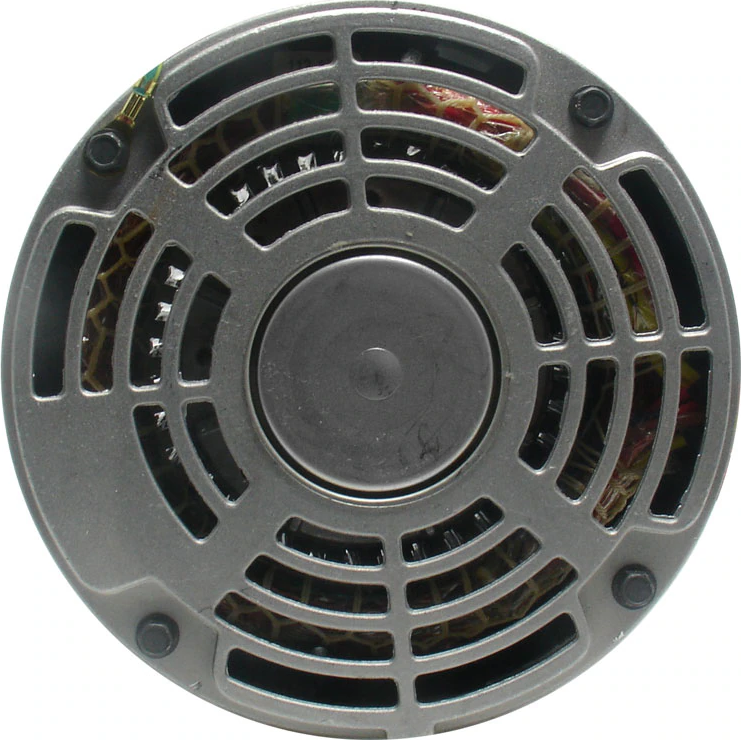

This ProTech direct-drive blower motor is engineered for maximum versatility to cover the vast majority of service applications. As part of the TripSaver® series, it is a reliable motor to keep on a service truck, helping to eliminate unnecessary trips for parts by replacing many common residential motors.Its adaptable design makes it suitable for a wide variety of equipment, including residential furnaces, air handlers, commercial variable air volume (VAV) systems, and fan filter units.
- Versatile Application:Features reversible rotation and all-position mounting to cover a wide range of direct-drive service needs.
- Flexible Performance:Equipped with four speed taps, allowing for precise airflow adjustments to meet specific system requirements.
- Simplified Installation:Includes 36-inch leads with quick-connect flag terminals to streamline the wiring process during replacement.
- Broad Compatibility:Designed as a universal replacement for most residential furnace and air handler motors from 1/6 to 1/2 HP.
- Reliable Operation:Built with durable sleeve bearings for dependable performance in residential and light commercial HVAC systems.
