| Actual Length | : | 20 |
| Actual Size | : | 6 |
| Actuator Color | : | blue |
| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 34,000 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER2 Range | : | 9.9-12.5 |
| EER2 | : | 9.0~10.0~11.0~12.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 17 A |
| Model Number | : | RA14AY |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 26.5 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 186 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Rane | : | 12.0-16.0 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 170 lbs |
| Sound Level | : | 71 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

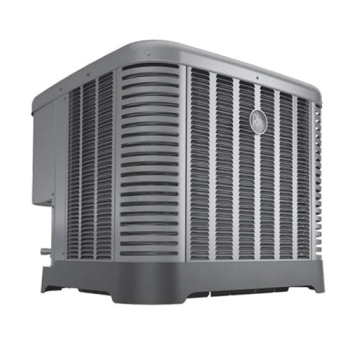

This Endeavor Line Classic single-stage air conditioner provides reliable and efficient cooling for residential applications. It operates with R-454B, a low Global Warming Potential (GWP) refrigerant, to meet modern environmental standards while delivering dependable comfort.Designed for durability and long-term performance, it features a robust cabinet and a corrosion-resistant base pan. With service-friendly features that allow for faster maintenance and a 10-year conditional parts warranty, this ENERGY STAR certified condenser is a solid choice for any home.
- Easy Serviceability:Plus
- One® Triple Service Access provides a 15-inch wide corner opening with a two-fastener, removable panel for faster repairs.
- Quiet Performance:Features Swept Wing Fan Technology, which improves unit acoustics for quieter home comfort.
- Efficient Coil Design:The 7mm copper condenser coil requires less refrigerant, allowing for a smaller footprint and enhanced reliability.
- Durable Construction:Built with curved louvered panels and a corrosion-resistant composite base pan to protect internal components from the elements.
- Advanced Safety:Includes the Plus
- One® Refrigerant Detection System™, an integrated A2
- L sensor and mitigation board for simplified commissioning and system protection.
