| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating | : | 60,000 BTU/h |
| CFM Airflow (Custom) | : | 1,600-1,725 CFM |
| CFM Airflow | : | 1,600 CFM~1,700 CFM~1,800 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Polypropylene~Steel |
| Filter Size | : | 20 x 20 in |
| Height | : | 57 in |
| Integrated Mitigation Control | : | Yes |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RH2TY |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 2 |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line |
| Product Weight | : | 139 lbs |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 151 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |

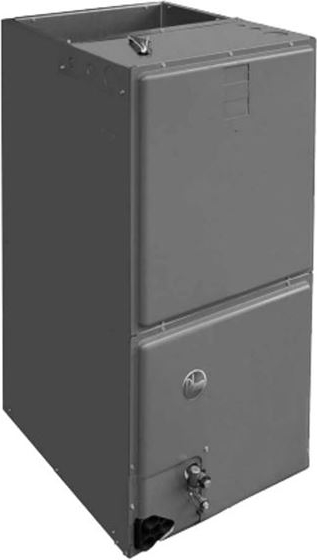

The Rheem Endeavor Line RH2TY Air Handler is engineered for dependable residential comfort and performance. Its two-stage constant torque motor delivers consistent airflow for improved temperature control, while utilizing low-GWP R-454B refrigerant to meet modern environmental standards.Designed for installation flexibility, the rugged steel cabinet supports multi-position configurations and is suitable for manufactured home applications. This unit includes a thermal expansion valve (TXV) for precise refrigerant control and is compatible with both air conditioning and heat pump systems.
Refrigerant Detection System: Features the integrated PlusOne® system with an A2L sensor and mitigation board to simplify commissioning, ensure compatibility with any 24V thermostat, and protect the system.Versatile Installation: A 4-way convertible, compact design allows for upflow, downflow, horizontal left, and horizontal right applications, providing flexibility even in tight spaces.Corrosion-Resistant Coil: Constructed with an all-aluminum indoor coil, featuring aluminum fins bonded to internally grooved tubing for enhanced durability and service life.Quiet Operation: The cabinet is built with 1-inch, foil-faced insulation to reduce operational sound levels for a quieter indoor environment.Service-Friendly Design: A slide-out blower design allows for convenient access during routine maintenance and service calls.Efficient Cabinet: Engineered for less than 2% air leakage at 1-inch H2O when tested per ASHRAE Standard 193, improving overall system efficiency.
