| Color | : | Silver / Metallic |
| Facing Type | : | FRK |
| Flame / Smoke Rating | : | 25/50 |
| Insulated | : | Yes |
| Length | : | 120 in |
| Material | : | Fiberglass |
| Noise Reduction Coefficient (NRC) | : | 0.75 |
| Operating Temperature Rating | : | 40-250 F |
| Package Quantity | : | 6 |
| Product Family | : | QuietR |
| Product Type | : | Duct Board |
| Product Weight | : | 14.83 lbs |
| R-Value | : | 4.3 |
| Thickness | : | 1 in |
| Width | : | 48 in |

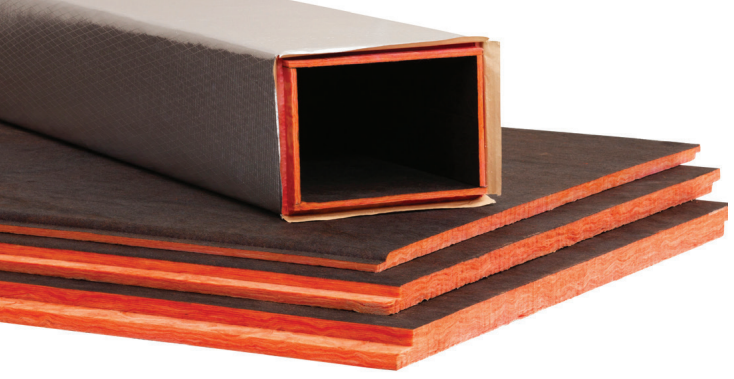

Owens Corning QuietR® Duct Board is a rigid, resin-bonded fibrous glass board designed for fabricating components for indoor HVAC duct systems. It provides excellent thermal and acoustical insulation in a single, easy-to-handle component, simplifying transport and installation.Suitable for both commercial and residential applications, this board features a durable, cleanable mat air stream surface. When properly fabricated and sealed with UL 181A listed closures, it forms a substantially airtight system capable of handling air velocities up to 6,000 fpm.
Acoustic Performance: Absorbs noise and reduces popping sounds caused by ductwork expansion, contraction, and vibration.Microbial Resistance: Treated with an EPA-registered biocide to help protect the air stream surface from bacterial and fungal growth.Lightweight Construction: Easier to transport, handle, and fabricate on the job site compared to traditional insulated sheet metal ducts.Energy Efficient: Creates a virtually airtight system when properly sealed, minimizing air leakage to save energy and reduce the need for system over-design.Durable Air Surface: Features a tough mat air stream surface that resists damage, isolates the fiberglass substrate, and allows for easy cleaning per NAIMA standards.Reinforced Facing: Equipped with a tough, damage-resistant, and flame-retardant reinforced aluminum foil (FRK) facing for enhanced durability and safety.
